[HOW TO FLASH] how to flash Miraclebox Premium Ultra HD

To flash the Miraclebox Premium Ultra HD, you will follow the standard procedure for Broadcom-based receivers. This model is a high-end, multi-tuner box that uses a specific folder name to trigger the update process.

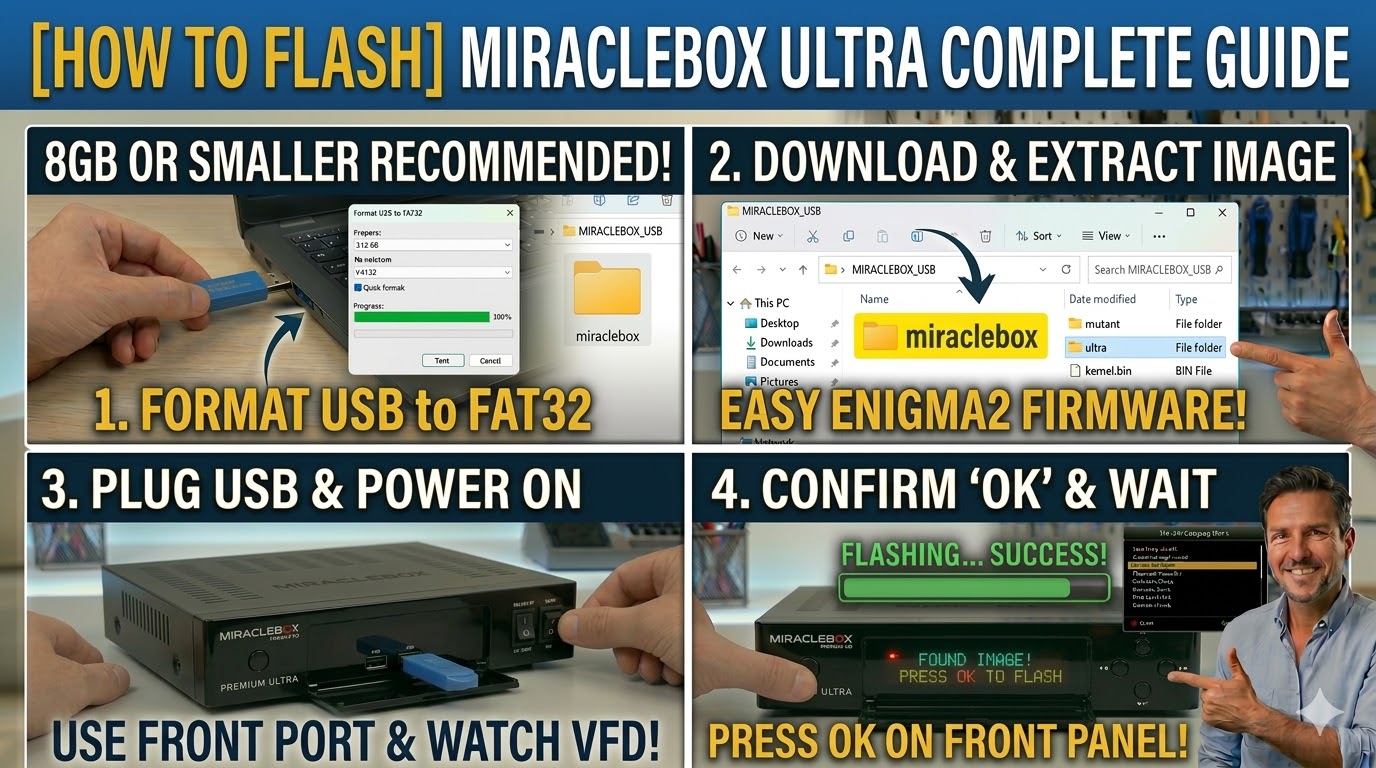

1. Preparation

• USB Stick: A high-quality USB stick (8GB or smaller is recommended).

• Format: The stick must be formatted to FAT32.

• Firmware: Download the image specifically for the Miraclebox Premium Ultra (e.g., OpenATV, Egami, or OpenViX).

2. Folder Structure

The bootloader looks for the manufacturer’s folder on the USB root.

1. Extract the downloaded firmware zip file.

2. You will see a folder named miraclebox.

3. Copy the entire miraclebox folder to the root of your USB stick.

   • Path: USB:\miraclebox\ultra\

   • Contents: Inside the ultra subfolder, you should see files like kernel.bin, rootfs.bin, and imageversion.

3. The Flashing Process

1. Power Off: Turn off the receiver using the power switch at the back.

2. Insert USB: Plug the USB stick into the front USB port (hidden behind the front flap) for the best results.

3. Power On: Turn the back power switch to ON.

4. Initiate Flash:

   • Watch the front panel display.

   • When the receiver detects the files, it will display a message: “Found Image! Press OK to flash.”

   • Quickly press the OK button located on the front panel (behind the flap) to confirm.

5. Wait: The display will show the flashing progress. Do not turn off the power.

6. Completion: Once finished, the box will reboot automatically. You can then remove the USB stick.

Pro-Tip for enigma2.net

The Miraclebox Premium Ultra is a robust machine, but its bootloader can be sensitive to USB stick types. If the “Found Image” prompt doesn’t appear, try a different (ideally older/smaller) USB stick. Also, ensure the subfolder is named exactly ultra; if it’s named after a different Miraclebox model, the flash will fail.
