[HOW TO FLASH] how to flash IZIBOX ECO TWIN HD

To flash the IZIBOX ECO TWIN HD, you will follow the standard procedure for this dual-tuner Broadcom-based receiver. It is a reliable HD box, but like most IZIBOX models, it requires a precise folder structure to trigger the bootloader’s update mode.

1. Preparation

• USB Stick: A high-quality USB 2.0 stick is highly recommended. For these older HD bootloaders, 8GB or smaller formatted to FAT32 provides the best success rate.

• Firmware: Download the image specifically for the IZIBOX ECO TWIN HD (OpenATV and OpenPLi are the most common).

2. Folder Structure

The receiver looks for the izibox directory with a specific subfolder for the “Eco Twin” model.

1. Extract the downloaded firmware .zip file.

2. You should see a folder named izibox.

3. Copy the entire izibox folder to the root of your USB stick.

   • Path: USB:\izibox\ecotwin\

   • Contents: Inside the ecotwin folder, you should see files like kernel.bin, rootfs.bin, and imageversion.

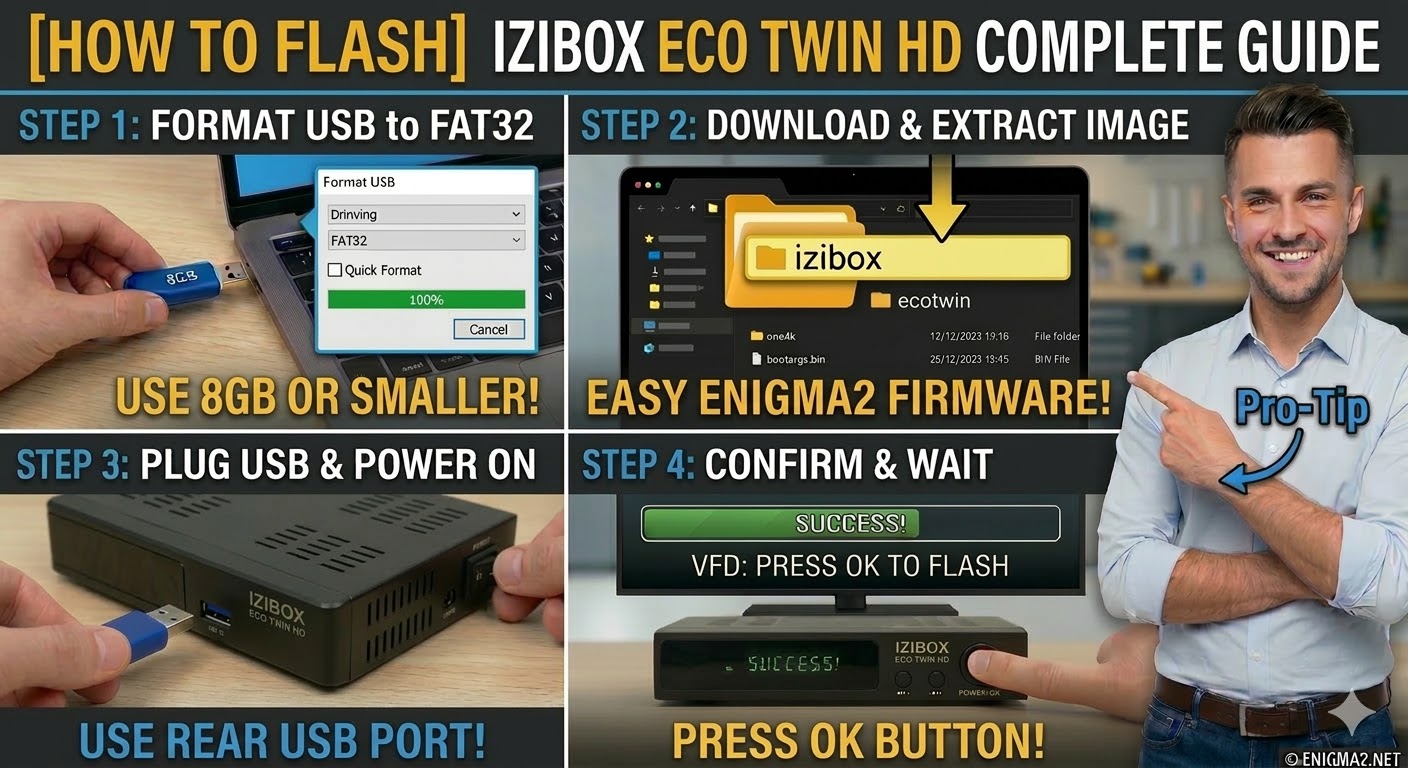

3. The Flashing Process

1. Power Off: Turn off the receiver using the power switch at the back.

2. Insert USB: Plug the USB stick into the rear USB port.

3. Power On: Turn the back power switch to ON.

4. Initiate Flash:

   • Watch the front panel display.

   • When the receiver detects the USB, it will display a message like “USB” or “Press OK”.

   • Quickly press the Power/OK button on the front panel to confirm.

5. Wait: The display will show the progress (e.g., “FLSH”). Do not interrupt the power.

6. Completion: The receiver will reboot automatically once finished.

The flashing process should take approximately two to four minutes to complete, while the receiver
is being flashed it is vitally important that you DO NOT power the receiver down for any reason as
this can cause serious and or permanent damage.
