[HOW TO FLASH] how to flash DINOBOT 4K pro

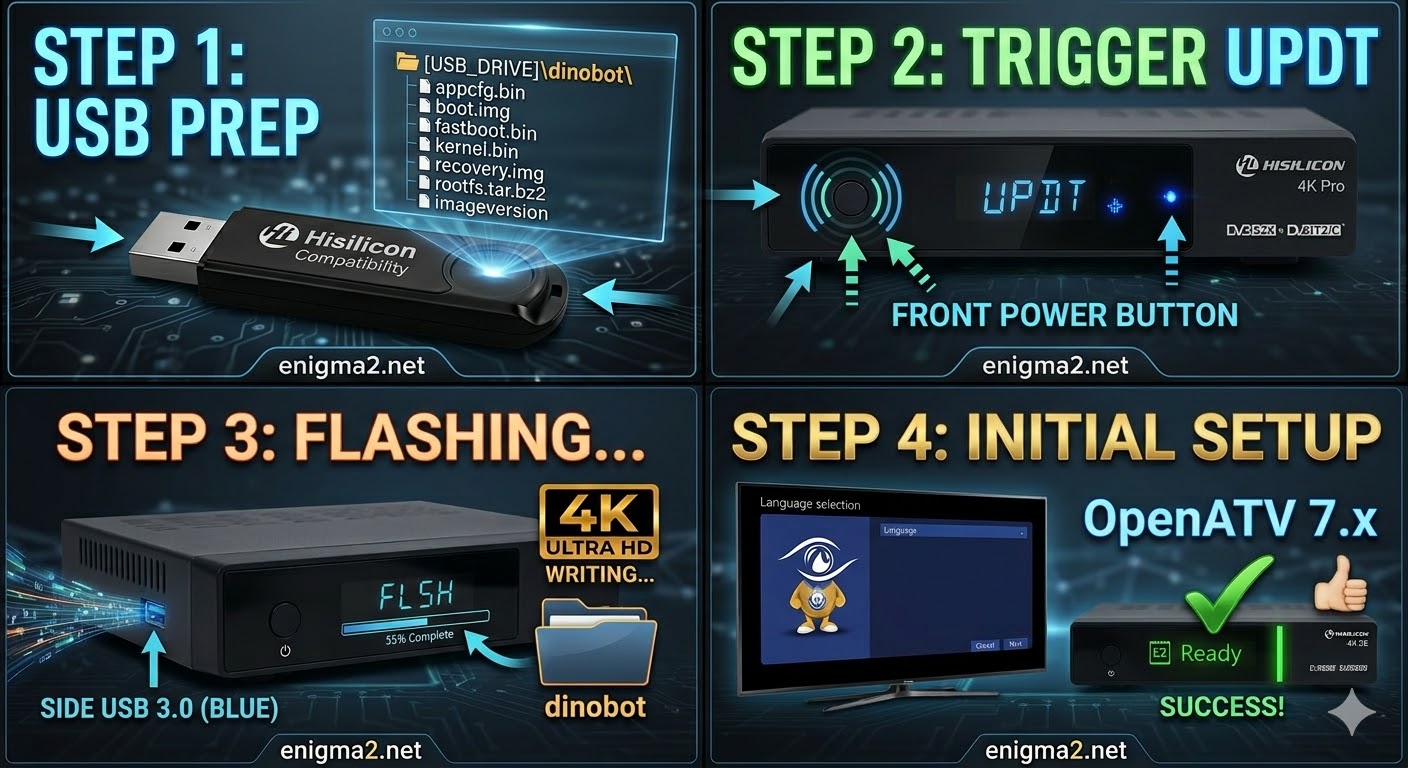

Flashing the Dinobot 4K Pro (Step-by-Step)

1. Prepare the USB Drive

• Format: Use a USB 2.0 stick (FAT32). Hisilicon bootloaders are sensitive to USB 3.0/3.1 high-speed drives; using a standard 4GB or 8GB USB 2.0 stick is the most reliable method.

• The Folder Path: Extract your Enigma2 image (OpenATV, etc.). The root of your USB drive must contain this exact folder:

  • USB_ROOT/dinobot/

• Verify Files: Inside the dinobot folder, you must see:

  • appcfg.bin, boot.img, fastboot.bin, kernel.bin, recovery.img, and rootfs.tar.bz2.

2. The Flashing Procedure

1. Power Down: Turn off the receiver using the physical power switch at the back.

2. Insert USB: Plug the stick into the USB 3.0 (Blue) port on the side or the rear.

3. The Trigger (The “Power Button” Method):

   • Turn the power switch to ON.

   • Immediately start tapping the Power Button on the Front Panel repeatedly.

   • Watch the VFD Display: When the display shows “UPDT” (Update), stop tapping.

4. Wait: The process takes about 3–5 minutes. The front VFD will show the flashing progress. Do not interrupt the power.

5. Finish: The receiver will reboot automatically into the Enigma2 setup wizard.

Dual-Boot Navigation

Since the Pro is a dual-boot box, use these remote shortcuts during the boot splash screen to switch environments:

• Hold Red Button: Boots into Enigma2.

• Hold Blue Button: Boots into Android TV.
