[REVIEW] PULSe 4K MINI

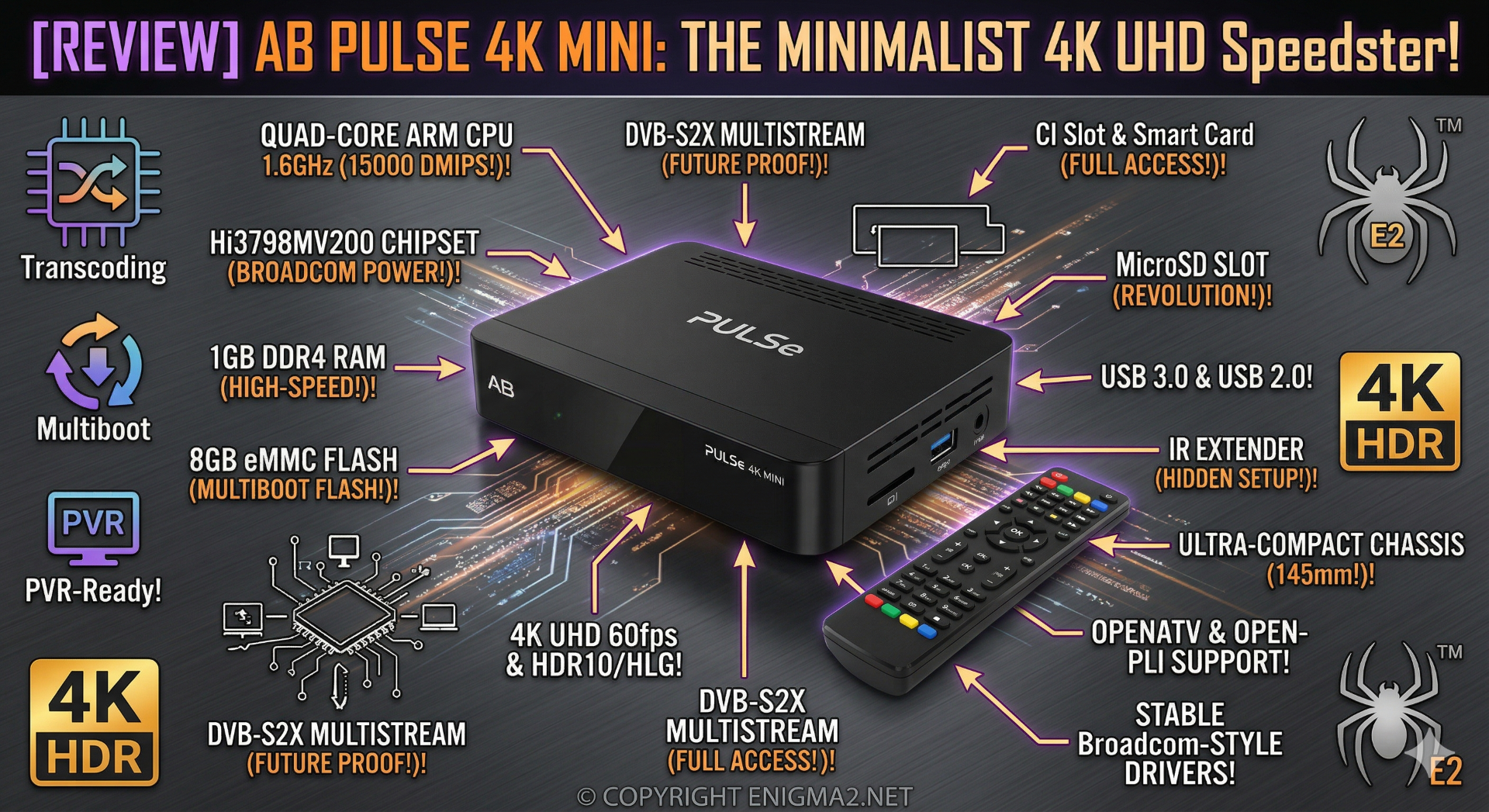

Review: AB PULSe 4K MINI (The Minimalist 4K UHD Speedster)
In a market often crowded with bulky receivers, the AB PULSe 4K MINI (and its updated SE version) stands out as a masterclass in minimalist design without sacrificing “high-end” soul. This isn’t just a budget box; it’s a focused 4K machine designed for the user who wants a clean living room setup but demands the raw power of a 15,000 DMIPS processor.
For the enigma2.net hobbyist, the PULSe 4K MINI offers the perfect balance: a tiny footprint that hides behind a TV (thanks to the included IR extender) and the reliability of a Broadcom-style ARM architecture that handles OpenATV and OpenPLi with effortless grace.
1. Core Hardware: The 15,000 DMIPS Pocket Rocket
The PULSe 4K MINI is built around a high-performance Quad-Core ARM processor (Hi3798MV200). This chipset has become a favorite in the community for its thermal efficiency and its ability to handle complex 4K decoding tasks without breaking a sweat.
-
Processor: The 1.6GHz Quad-Core CPU delivers 15,000 DMIPS, ensuring that zapping between 4K UHD channels is near-instant.
-
Memory Architecture: Equipped with 1GB DDR4 RAM and 8GB eMMC Flash, the MINI is lean and fast. While the 1GB RAM is less than its “big brother” (the standard PULSe 4K), it remains perfectly sufficient for 4K streaming and high-resolution skins.
-
Visual Standards: Full support for 4K @ 60fps, HDR10, and HLG. The picture quality on 4K satellite feeds is crisp, with excellent color depth and contrast handling.
| Hardware Feature | Benefit |
| Quad-Core ARM CPU | 15,000 DMIPS for smooth UI navigation and fast zapping. |
| 8GB eMMC Flash | Plenty of space for multi-booting and large plugin libraries. |
| HDR10 & HLG | Future-proof picture standards for stunning UHD visuals. |
| Ultra-Compact Chassis | Minimalist 145mm design fits anywhere. |
2. PVR and Storage: The MicroSD Revolution
One of the most “elegant” features of the PULSe 4K MINI is its approach to storage. While it lacks an internal 2.5″ SATA bay due to its size, it offers a high-speed MicroSD card slot.
-
Silent PVR: Using a MicroSD card for recordings and timeshift is a game-changer for bedroom setups. It eliminates the “ticking” and mechanical noise of traditional HDDs, providing a completely silent PVR experience.
-
Capacity: A 128GB MicroSD can hold approximately 50 hours of HD recordings, making it a viable alternative to external USB drives.
-
Connectivity: If you prefer traditional storage, the rear panel includes 1x USB 3.0 (ideal for recording) and 1x USB 2.0.
3. Tuner and Multimedia Flexibility
The MINI comes equipped with a Fixed DVB-S2X Multistream tuner.
-
S2X Support: This allows the box to lock onto modern satellite transponders that standard S2 tuners simply cannot see.
-
Transcoding: Despite its size, the MINI supports Multi-Transcoding. This means you can stream a channel to your smartphone or tablet in a lower bitrate while someone else watches the main TV—a feature usually reserved for much more expensive receivers.
-
CAM Support: On the rear, you’ll find 1x Common Interface (CI) slot and 1x Smart Card reader, providing full conditional access flexibility.
4. Software: A Multiboot Playground
For the enigma2.net power user, the software support is the real highlight:
-
Multiboot: The 8GB flash is partitioned to allow for up to 4 different images simultaneously. You can test the latest OpenATV 7.x in one slot while keeping your stable OpenPLi in another.
-
Recovery Mode: Flashing is simple and safe via USB, with a dedicated recovery mode that makes it almost impossible to “brick” the device.
-
Remote Control: The new AB ALL TV remote included with the SE version is programmable, allowing you to control both your TV and receiver with a single, ergonomic wand.
Final Verdict: The Stable Minimalist Champion
The AB PULSe 4K MINI is the definition of “small but mighty.” It doesn’t try to be a media server for the whole house; it aims to be the fastest, most stable 4K satellite receiver for your main viewing area or bedroom. With its silent MicroSD PVR, 15,000 DMIPS power, and excellent driver support, it is a top-tier recommendation for anyone looking to upgrade to 4K without the bulk.
