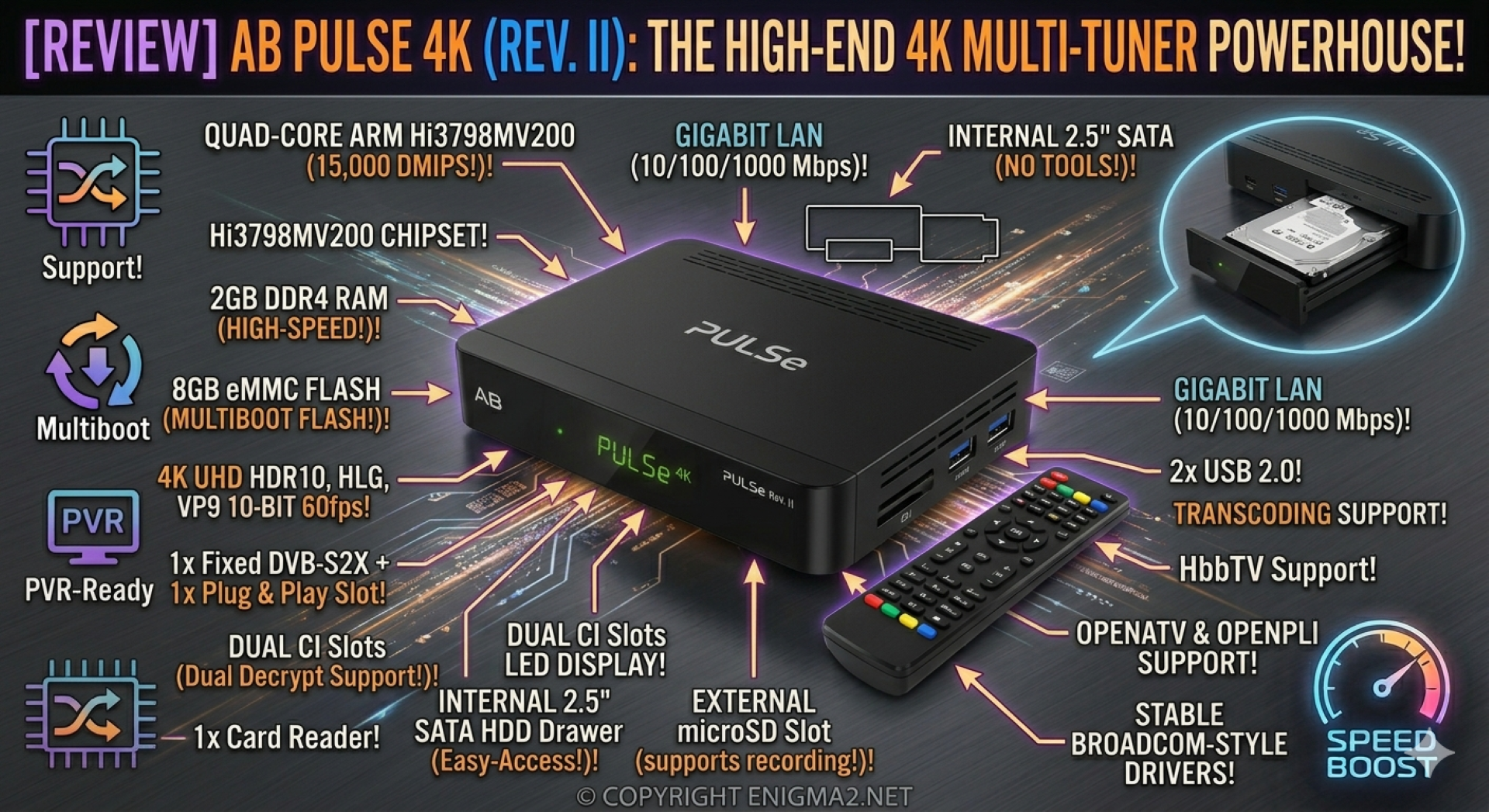

Review: AB PULSe 4K (The High-End 4K Multi-Tuner Powerhouse)

While the PULSe 4K MINI dominates the minimalist space, the AB PULSe 4K (and the updated Rev. II) is the unrestricted flagship of the AB-COM family. It is a high-performance 4K UHD receiver designed for the power user who refuses to compromise on storage, tuner flexibility, or decryption capabilities. Maintaining a professional 270mm footprint, it houses “heavyweight” features like a dual CI slot and a rear-access HDD drawer that smaller boxes simply cannot accommodate.

For the enigma2.net veteran, this box represents the pinnacle of modern ARM architecture, delivering a rock-solid OpenATV experience with enough overhead to manage complex motorized setups and multi-room streaming simultaneously.

1. Core Hardware: The 15,000 DMIPS Flagship Engine

The PULSe 4K utilizes the potent Hi3798MV200 Quad-Core engine, providing a massive performance overhead for 4K rendering and multitasking.

• Processor: 1.6GHz Quad-Core 64-bit CPU delivering 15,000 DMIPS, ensuring near-instant response times for menu navigation and channel zapping.

• Memory: Boasting 2GB DDR4 RAM and 8GB eMMC Flash, this receiver handles the heaviest 4K skins and complex IPTV plugins with total fluidity.

• Visual Standards: Full 4K UHD @ 60fps support with HDR10 and HLG. The scaling engine is exceptional, bringing legacy SD and HD content up to modern 4K standards with minimal artifacts.

---

2. Full Technical Specifications

Category	Specification Details
Processor	Quad-Core ARM Hi3798MV200 (15,000 DMIPS)
Operating System	Enigma2 (Linux)
Memory	2GB DDR4 RAM
Flash Memory	8GB eMMC
Tuners	1x Fixed DVB-S2X + 1x Plug & Play Slot (DVB-S2X or DVB-C/T2)
Video Decoding	4K x 2K @ 60fps (10-bit), HDR, HDR10, HLG
Audio Decoding	MPEG-1 layer I/II, PCB downmix, IEC958 SPDIF
Internal Storage	Drawer system for 2.5″ SATA HDD (Easy-Access)
External Storage	1x MicroSD Slot (supports recording), 2x USB 2.0
Common Interface	2x CI Slots (Dual Decrypt Support)
Smart Card	1x Card Reader
Display	7-Segment LED (Blue/Green Status)
Networking	Ethernet RJ45 (10/100 Mbps)
Connectivity	1x HDMI 2.0a, 1x S/PDIF (Optical), 1x IR Extender Port
Power	External DC 12V-3A (Max 36W)
Dimensions	270 x 190 x 62 mm

---

3. Storage & PVR: The “No-Tools” HDD Revolution

The full-sized PULSe 4K offers a sophisticated, dual-layer storage solution:

• Rear-Access HDD Bay: The Easy-Access HDD Drawer is a game-changer. You can slide in a 2.5″ SATA HDD or SSD in seconds without opening the receiver or using a single screw.

• MicroSD Slot: Behind the front flap is a dedicated MicroSD card slot. This is the perfect home for your Picons and EPG data, keeping the internal flash lean while providing a silent recording alternative to mechanical hard drives.

4. Decryption & Tuner Flexibility

• Dual CI Advantage: The presence of two CI slots with simultaneous decoding support is a major highlight. You can record an encrypted channel from one provider while watching a different encrypted stream from another—a rare feature in this price bracket.

• Multistream & S2X: The tuners are fully compliant with DVB-S2X Multistream, ensuring compatibility with professional Italian, French, and Bulgarian feeds on 5W, 9E, and 33E.

Final Verdict: The Professional Choice

The AB PULSe 4K is a formidable contender for the “best all-rounder” title in 2026. It combines the legendary stability of Enigma2 with modern 4K ARM power and the most user-friendly storage system on the market. If you need Dual CI slots and a tool-less internal HDD for serious recording, the PULSe 4K is the definitive professional choice.

---
