[REVIEW] Opticum AX-Odin
Review: Opticum AX-Odin (The Broadcom E2 Pioneer)
The Opticum AX-Odin holds a special place in Enigma2 history as one of the first budget-friendly receivers to successfully implement a Broadcom chipset. Before its release, Broadcom-powered boxes were typically reserved for the high-end flagship market. The AX-Odin changed the game, offering the stability and high-quality video processing of a BCM chip at a price point that made Enigma2 accessible to the masses.
For the enigma2.net community, this box is remembered as the “Odin Classic”—a single-tuner HD powerhouse that proved small dimensions didn’t have to mean small performance.
1. Core Hardware: The Original Broadcom Stability
The AX-Odin is built around the Broadcom BCM7358 processor. While it lacks the dual-threading of the later “Twin” or “Plus” models, this chip is legendary for its reliability and low power consumption.
-
Processor (750 DMIPS): The single-core Broadcom CPU provides a stable environment for OpenATV and OpenPLi. It is optimized for standard satellite HD tasks, ensuring that core functions like EPG loading and channel scanning are reliable.
-
Memory Architecture: Equipped with 512MB DDR3 RAM and 256MB NAND Flash. For a single-tuner HD box, this is a generous configuration that allows for a smooth user experience even with modern, graphic-heavy skins.
-
Korean Engineering: Unlike many budget receivers, the AX-Odin was manufactured in the same Korean factories as high-end Xtrend models, resulting in superior build quality and long-term hardware durability.

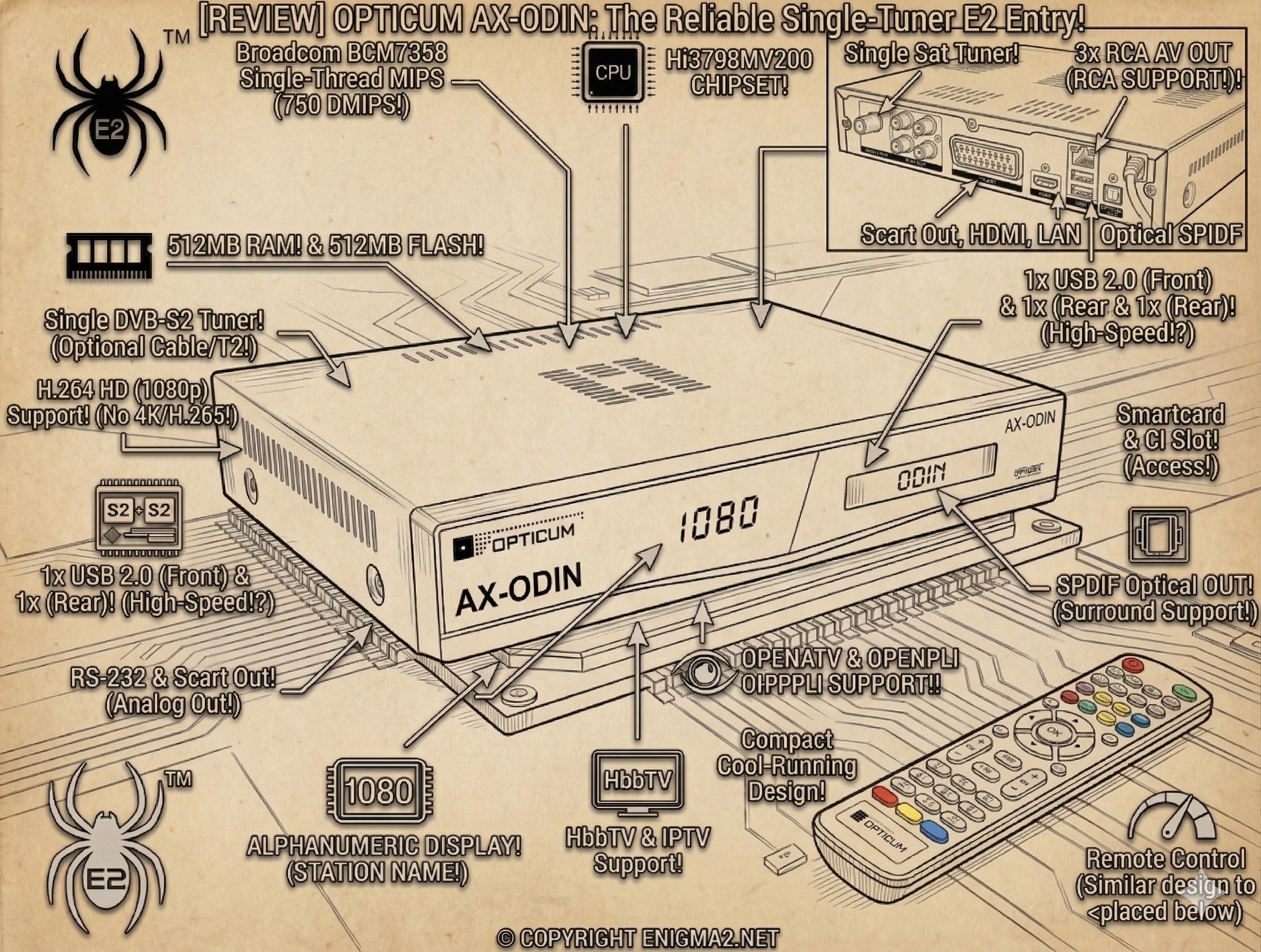

2. Full Technical Specifications
| Category | Specification Details |
| Chipset | Broadcom BCM7358 |
| Performance | Over 750 DMIPS |
| Operating System | Enigma2 Linux (Official support from OpenATV, Odin Team) |
| RAM | 512 MB DDR3 |
| Flash | 256 MB NAND |
| Resolution | Full HD 1080p (H.264 / MPEG-2) |
| Tuner | 1x Fixed DVB-S2 (Satellite) |
| Display | 7-Segment LED Display |
| Network | 100Mbit LAN Ethernet |
| Connectivity | 2x USB 2.0 (Rear), HDMI 1.3, SPDIF (Coaxial), RCA AV |
| Card Reader | 1x Smart Card Reader (CA) |
| Dimensions | Compact “Mini” Chassis |
3. Video Performance & Zapping
One of the biggest advantages of the AX-Odin over its competitors at launch was the Fast Channel Change capability.
-
Broadcom Picture Quality: The BCM7358 chip excels at hardware decoding. Whether viewing 1080p movies or standard 720p broadcasts, the image remains sharp with the natural color reproduction that Broadcom is known for.
-
Multimedia Support: Despite its “mini” status, the drivers are fully optimized for the Enigma2 Media Player. It handles a wide variety of formats including MKV, AVI, and MP3 via external USB storage.
4. Connectivity & Software Support
-
USB Flexibility: With two USB 2.0 ports on the rear, you can simultaneously connect an external HDD for PVR functions and a USB WiFi dongle for wireless networking.
-
Universal E2 Support: Because it uses a standard Broadcom architecture, the AX-Odin enjoys massive software support from the OE-Alliance. It is fully compatible with almost all major Enigma2 plugins, including YouTube, HbbTV, and various IPTV tools.
-
Low Power Consumption: In deep standby, the receiver consumes less than 0.5W, making it one of the most eco-friendly Linux boxes in its class.
Final Verdict: The Entry-Level Gold Standard
The Opticum AX-Odin is a “no-frills” professional. It isn’t a 4K machine, and it doesn’t have the H.265 support of the newer “Plus” models. However, as a dedicated 1080p satellite receiver, it offers a level of driver maturity and hardware stability that is hard to find in modern budget boxes. For the enigma2.net user who needs a reliable, high-quality second-room box or a stable entry into the world of Linux TV, the AX-Odin remains a classic choice.
