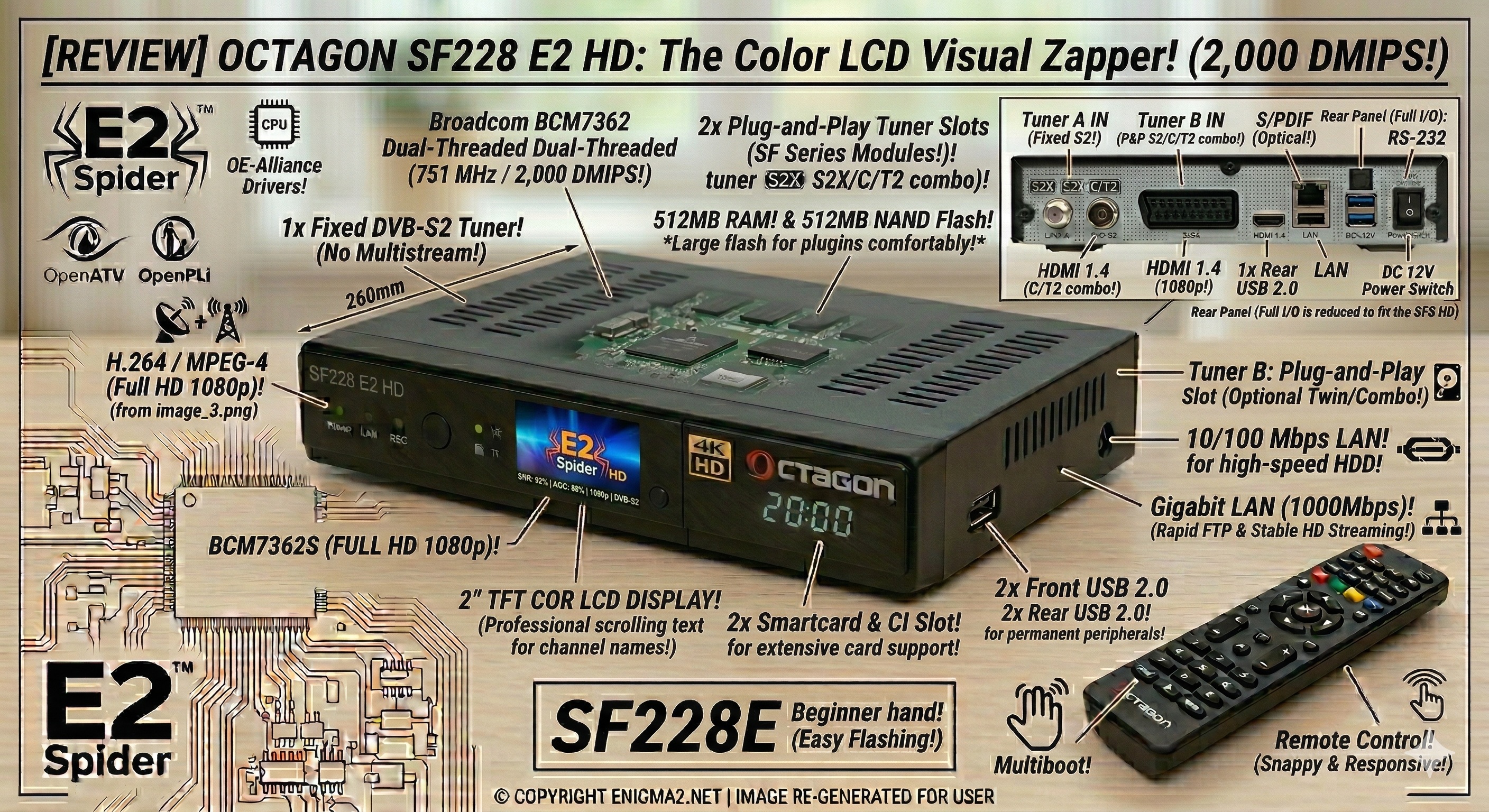

[REVIEW] Octagon SF228 E2 HD
The Octagon SF228 E2 HD is a standout member of the Broadcom MIPS generation, best known for being one of the first budget-friendly receivers to feature a high-quality 2-inch color LCD display. It bridges the gap between basic zappers and high-end multimedia boxes, offering a specialized experience for users who want visual feedback and twin-tuner flexibility.
Technical Blueprint
| Component | Professional Specification | Performance Impact |
| CPU | Broadcom BCM7362 Dual-Threaded | 751 MHz delivering 2,000 DMIPS. |
| RAM / Flash | 512MB DDR3 / 512MB NAND | Large flash for its class; supports multiple plugins comfortably. |
| Display | 2″ TFT Color LCD | Displays channel logos, picons, and technical info. |
| Tuner A | DVB-S2 (Fixed) | Integrated satellite tuner for standard HD reception. |
| Tuner B | Plug-and-Play Slot | Optional second tuner (S2, C, or T2) for Twin/Combo setups. |
| Network | 10/100 Mbps LAN | Reliable for standard streaming and card-server tasks. |
The Expert’s Breakdown
1. The LCD Visual Advantage
The most striking feature of the SF228 is the integrated color TFT display. While most receivers in this price bracket used 4-digit 7-segment green displays, the SF228 provides a rich interface on the front panel. Using skins like LCD4Linux, you can display everything from the current channel logo (picon) and weather to detailed tuner signal strength ($SNR$) and $AGC$ levels.
2. Broadcom BCM7362 Performance
Powered by the dual-threaded BCM7362, the SF228 is significantly snappier than the older BCM7358 models. The 2,000 DMIPS performance ensures that Enigma2 images like OpenATV or OpenPLi boot in roughly 35 seconds. It handles modern H.264 HD streams with ease and provides a very stable platform for softcam operations.
3. Hybrid P&P Flexibility
The “Twin” in its name comes from the expansion slot. By default, it arrives as a single-tuner satellite box, but the Plug-and-Play slot allows you to add a second tuner easily. This makes it an ideal choice for users on enigma2.net who need a customized Combo box (Satellite + Terrestrial) for local DVB-T2 channels.
Critical Analysis & Trade-offs
-
Legacy H.264 Only: This is a Full HD (1080p) receiver. It lacks H.265 (HEVC) hardware decoding, meaning it cannot play modern 4K satellite feeds or 4K IPTV streams.
-
Tuner Slot Height: Because the chassis is compact, the P&P tuner modules are specific to this series. Ensure you purchase the correct “SF Series” tuner module if you plan to upgrade.
-
USB Placement: With two USB 2.0 ports, it has decent connectivity, but like most compact boxes, using a bulky WiFi dongle can sometimes block access to the adjacent ports.
Final Verdict
The Octagon SF228 E2 HD is a highly capable “Visual Zapper.” Its combination of a dedicated color LCD and the stable Broadcom BCM7362 chipset makes it a favorite for hobbyists who want more than just a black box. If you don’t need 4K and value a front-panel display that actually provides useful data, the SF228 remains one of the most charming HD receivers in the legacy lineup.
