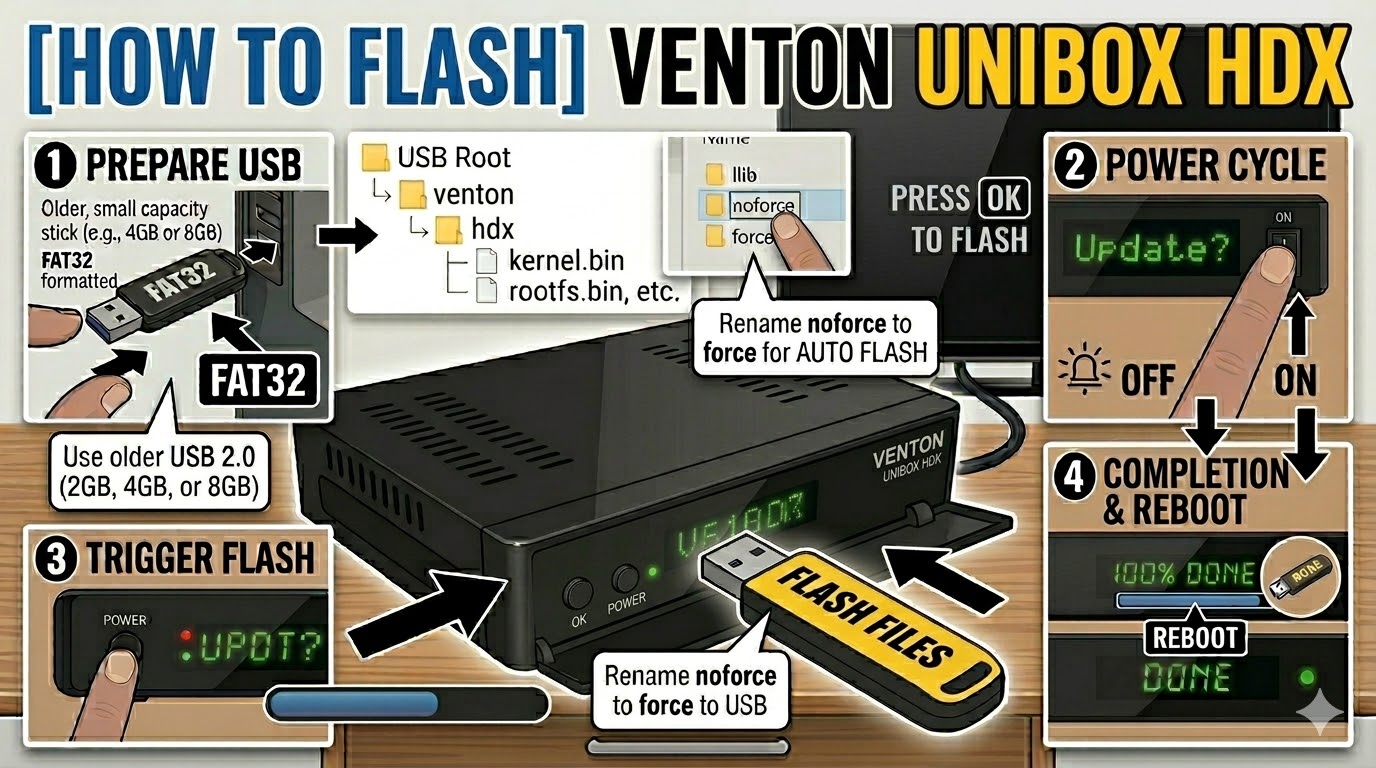

[HOW TO FLASH] how to flash Venton Unibox HDX

The Venton Unibox HDX is a versatile Enigma2 receiver that requires a specific folder structure to be recognized by its bootloader. Because it’s a slightly older model, the “small USB” rule is very important for a successful flash.

Preparation

1. USB Drive: Use a FAT32 formatted USB stick. For the HDX, an older USB 2.0 (2GB, 4GB, or 8GB) drive is the most reliable choice.

2. The Files: Extract your image zip file (e.g., OpenATV, Egami). You must see a folder named venton and a subfolder inside it named hdx.

3. Root Path: Copy the venton folder to the root of the USB drive.

   • Structure: USB Root > venton > hdx > (files: kernel.bin, rootfs.bin, etc.)

Flashing Steps

1. Power Down: Turn off the receiver using the physical rocker switch at the back.

2. Insert USB: Plug the USB stick into the front USB port (behind the front flap).

3. Power On: Flip the rear power switch to ON.

4. The Trigger: * Watch the front panel display.

   • When it shows “Update?” or “Confirm?”, immediately press the Power Button on the front panel.

5. Monitoring: The display will show “Flashing” or a progress bar. This typically takes 3 to 5 minutes. Do not turn off the power during this phase.

6. Completion: Once the process is finished, the display will say “Success” or “Done”, and the box will reboot automatically.

7. Finalize: Remove the USB stick as soon as the box starts to reboot to prevent it from entering the update cycle again.

Quick Troubleshooting

• Box Boots to Old Image: Ensure the folder name is exactly hdx. If it still doesn’t work, try using the rear USB port, as some bootloader versions prioritize it.

• The “Force” Shortcut: If you have trouble with the front button timing, go into the hdx folder on your USB, find the file named noforce, and rename it to force. The receiver will then flash automatically upon power-up.
