[HOW TO FLASH] how to flash TechnoMate tmtwin4k

The Technomate TM-TWIN 4K is a powerful Enigma2 receiver that uses a specific Broadcom-based flashing routine. Like many 4K Technomate models, it is very reliable but can be picky about the USB drive used during the boot process.

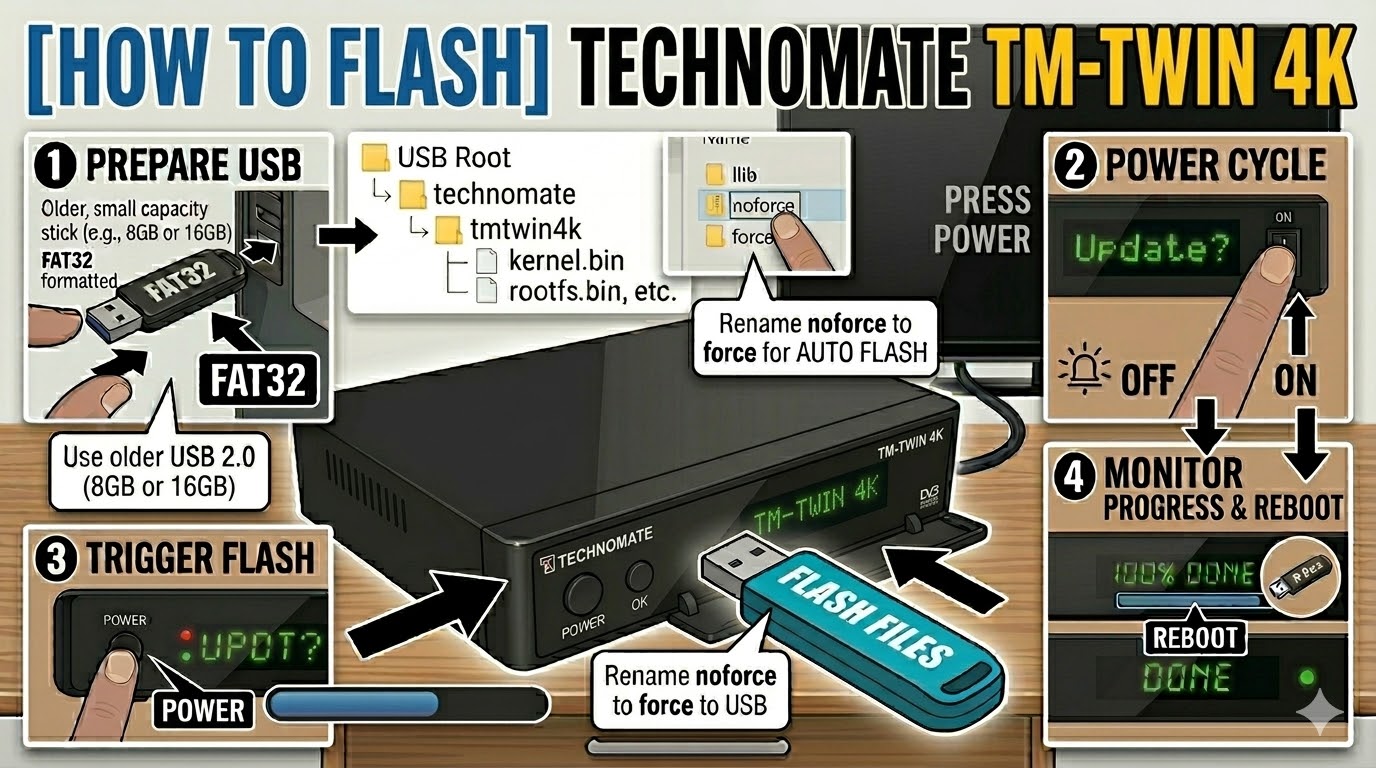

Preparation

1. USB Drive: Use a FAT32 formatted USB stick. It is highly recommended to use an older USB 2.0 (8GB or 16GB) drive. Modern high-capacity or USB 3.0/3.1 sticks are frequently ignored by the bootloader.

2. The Files: Extract your image zip file (e.g., OpenATV, OpenViX, or PurE2). You must see a folder named technomate and a subfolder inside it named tmtwin4k.

3. Root Path: Copy the technomate folder to the root of your USB drive.

   • Structure: USB Root > technomate > tmtwin4k > (files: kernel.bin, rootfs.bin, etc.)

Flashing Steps

1. Power Down: Turn off the receiver using the physical power switch at the back.

2. Insert USB: Plug the USB stick into the front USB port (located behind the front flap).

3. Power On: Flip the rear power switch to ON.

4. The Trigger: * Watch the front panel VFD display.

   • When it shows “Found Update” or “Update? Press Power”, immediately press the Power Button on the front panel of the receiver (behind the flap).

5. Flashing Process: The display will change to “Flashing” or show a percentage progress. This typically takes 3 to 5 minutes. Do not turn off the power during this time.

6. Completion: Once finished, the display will show “Success” or “Done”, and the box will reboot automatically.

7. Finalize: Remove the USB stick as soon as the box starts to reboot to prevent it from detecting the flash files again on the next boot.

Quick Troubleshooting

• Box ignores the USB: Double-check that the folder is named exactly tmtwin4k. If it still boots to the old image, try using the rear USB port.

• The “Force” Shortcut: If you have trouble with the front button timing, go into the tmtwin4k folder on your USB, find the file named noforce, and rename it to force. The receiver will then flash automatically upon power-up without needing a button press.
