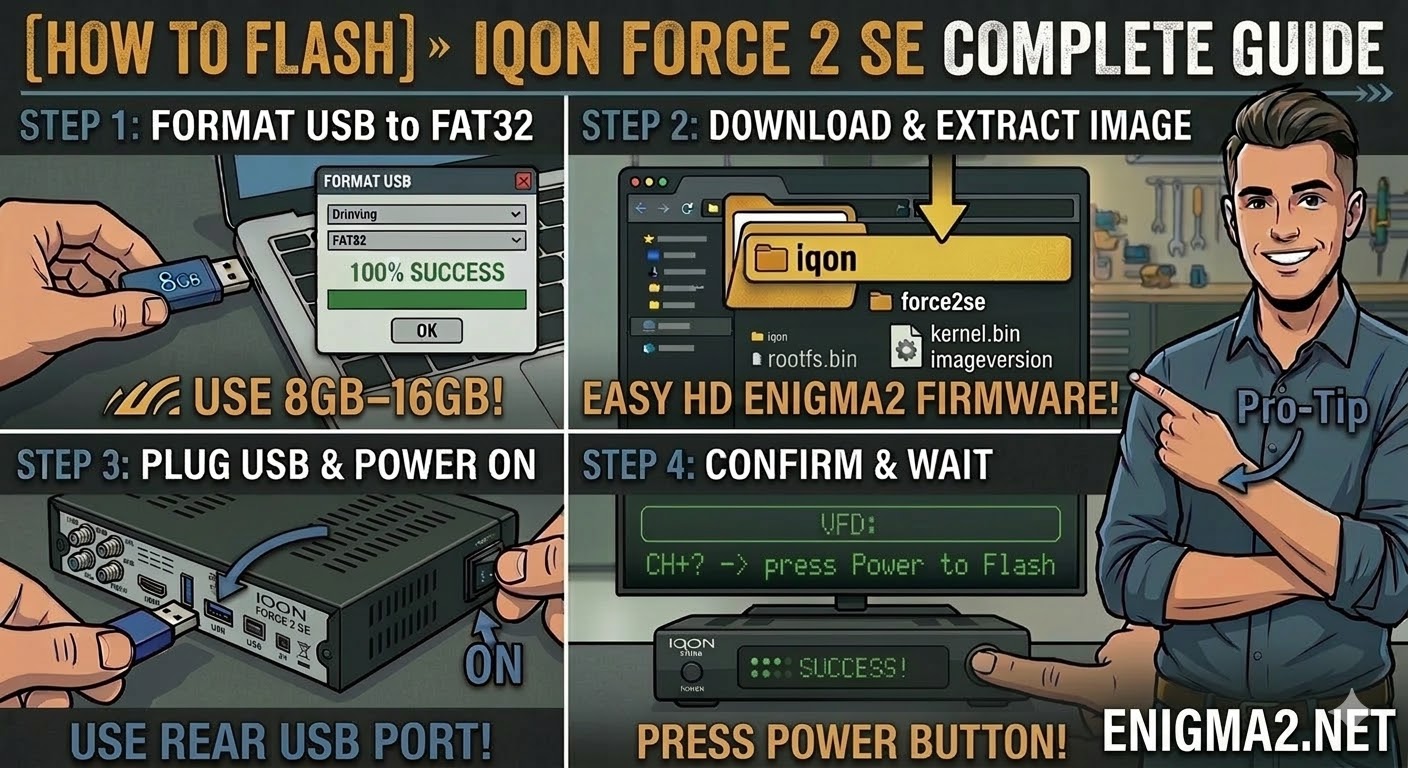

[HOW TO FLASH] how to flash IQON Force 2 SE

To flash the IQON Force 2 SE, you will follow the standard procedure for this popular Broadcom-based HD receiver. The “SE” (Second Edition) is a refined version of the Force 2 and requires the specific folder structure to be recognized by the bootloader during start-up.

1. Preparation

• USB Stick: A high-quality USB 2.0 stick is best. For these older Broadcom bootloaders, 8GB or smaller formatted to FAT32 has the highest success rate.

• Firmware: Download the image specifically for the IQON Force 2 SE (OpenATV, OpenPLi, or Egami).

2. Folder Structure

The bootloader identifies the update files within a specific subfolder inside the iqon directory.

1. Extract the downloaded firmware .zip file.

2. You should see a folder named iqon.

3. Copy the entire iqon folder to the root of your USB stick.

   • Path: USB:\iqon\force2se\

   • Contents: Inside the force2se subfolder, you should see files like kernel.bin, rootfs.bin, and imageversion.

3. The Flashing Process

1. Power Off: Turn off the receiver using the power switch at the back.

2. Insert USB: Plug the USB stick into the rear USB port.

3. Power On: Turn the back power switch to ON.

4. Initiate Flash:

   • Watch the front panel display.

   • When it detects the valid USB files, it will display a message like “USB” or “Found Image”.

   • Quickly press the Power button on the front panel to confirm and start the flash.

5. Wait: The display will show the progress (e.g., “FLSH”). Do not turn off the power.

6. Completion: The receiver will reboot automatically once the process is 100% complete.

The flashing process should take approximately two to four minutes to complete, while the receiver
is being flashed it is vitally important that you DO NOT power the receiver down for any reason as
this can cause serious and or permanent damage.
