[HOW TO FLASH] how to flash Edision OS mini plus

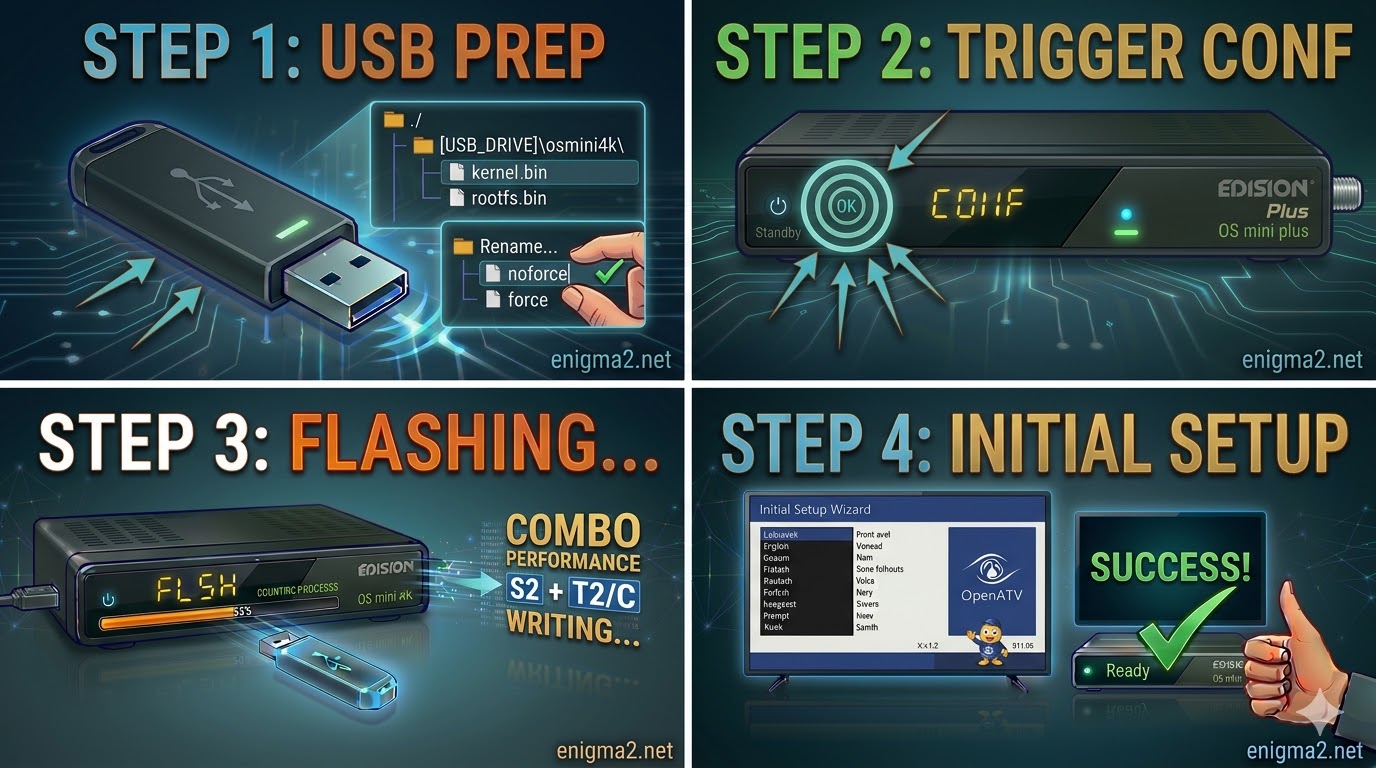

Flashing the Edision OS mini plus (Step-by-Step)

1. Prepare the USB Drive

• Format: Use a high-quality USB 2.0 stick (FAT32 formatted). Sticks 8GB or smaller are highly recommended to ensure the bootloader detects the drive.

• The Folder Path: Extract the Enigma2 image (OpenATV, OpenPLi, etc.). The root of your USB drive must contain a folder named:

  • USB_ROOT/osmini/

• Verify Files: Inside the osmini folder, you must have:

  • kernel.bin

  • rootfs.bin

  • imageversion

  • The “Force” Option: If there is a file named noforce, rename it to force to make the receiver flash automatically upon power-on.

2. The Flashing Procedure

1. Power Off: Turn off the receiver using the physical power switch at the back.

2. Insert USB: Plug the stick into the rear USB port.

3. The Trigger:

   • Turn the power switch back to ON.

   • If using force: The front LED will begin to pulse or change color immediately to indicate the flash.

   • If using noforce: Watch your TV screen. When the prompt appears, press the OK button on your Remote Control.

4. Wait: The process takes about 3–5 minutes. The front LED will continue to pulse during the data write. Do not power off during this stage.

5. Finish: The receiver will reboot automatically. You can remove the USB once the installation wizard (language selection) appears.

The flashing process should take approximately two to four minutes to complete, while the receiver
is being flashed it is vitally important that you DO NOT power the receiver down for any reason as
this can cause serious and or permanent damage.
