[HOW TO FLASH] how to flash AX 4K HD51

The AX 4K HD51 is a legendary Broadcom-based receiver. It was one of the first to popularized the 4-slot multiboot system. Unlike the HiSilicon-based Multiboxes, the HD51 uses a standard “Power-on-trigger” for USB flashing.

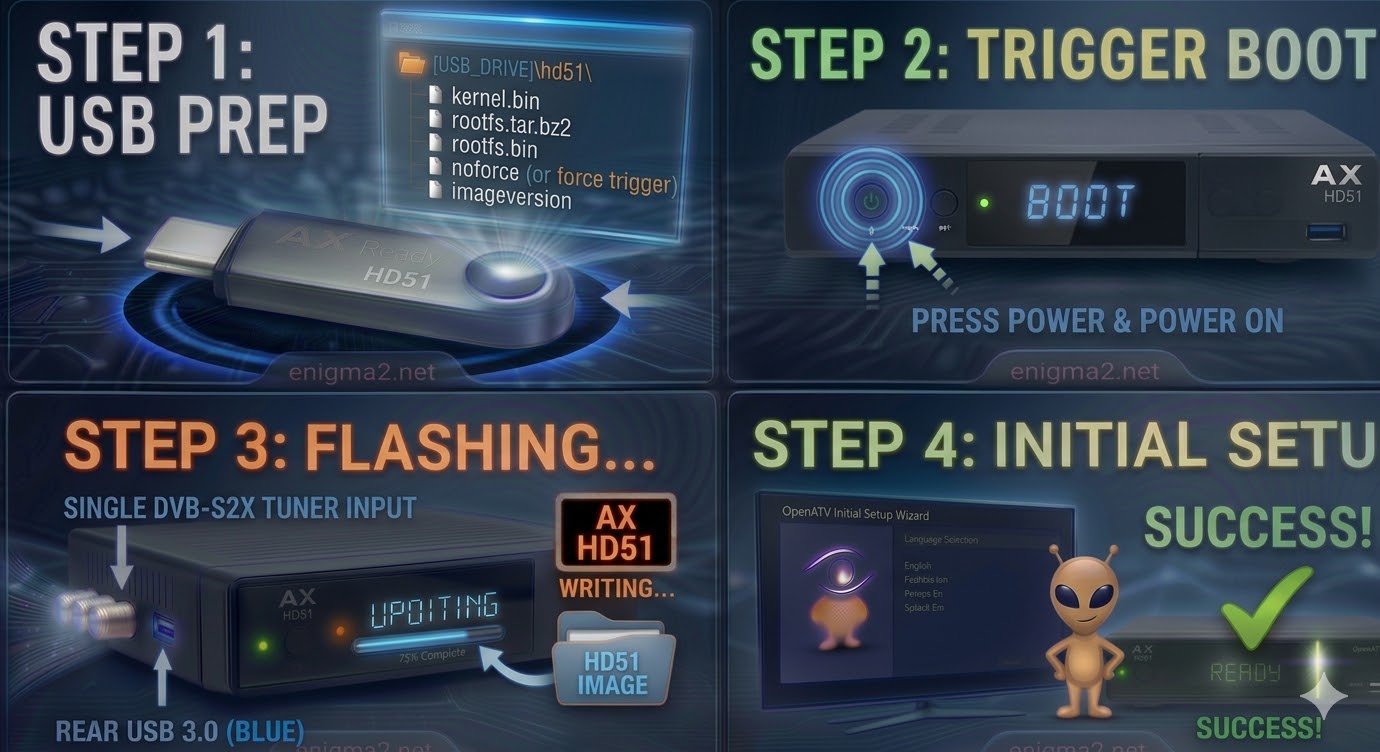

Step 1: USB Preparation

• Format: Use a high-quality USB 2.0 or 3.0 stick formatted to FAT32.

• Folder Structure: Unzip your image (e.g., OpenATV 7.x). You will see a folder named hd51.

• Target Path: The hd51 folder must be in the root of the USB drive.

  • Path check: USB_DRIVE:\hd51\

  • Files: Ensure it contains kernel.bin, rootfs.tar.bz2, disk.img, and imageversion.

Step 2: The Flashing Procedure

1. Full Power Off: Switch off the receiver using the physical power switch at the back.

2. Insert USB: Plug the drive into the front USB port (behind the flap).

3. Boot & Trigger:

   • Reach around the front and press and hold the Power Button.

   • While holding it, flip the rear power switch to ON.

   • Watch the front panel display. When it shows “Flashing” or “Updating,” you can release the Power Button.

4. Wait for Progress: The display will show the progress. It typically takes 2–4 minutes. Do not interrupt the power.

5. Reboot: Once finished, the box will reboot into the Setup Wizard. Remove the USB drive during the reboot to prevent a loop.
