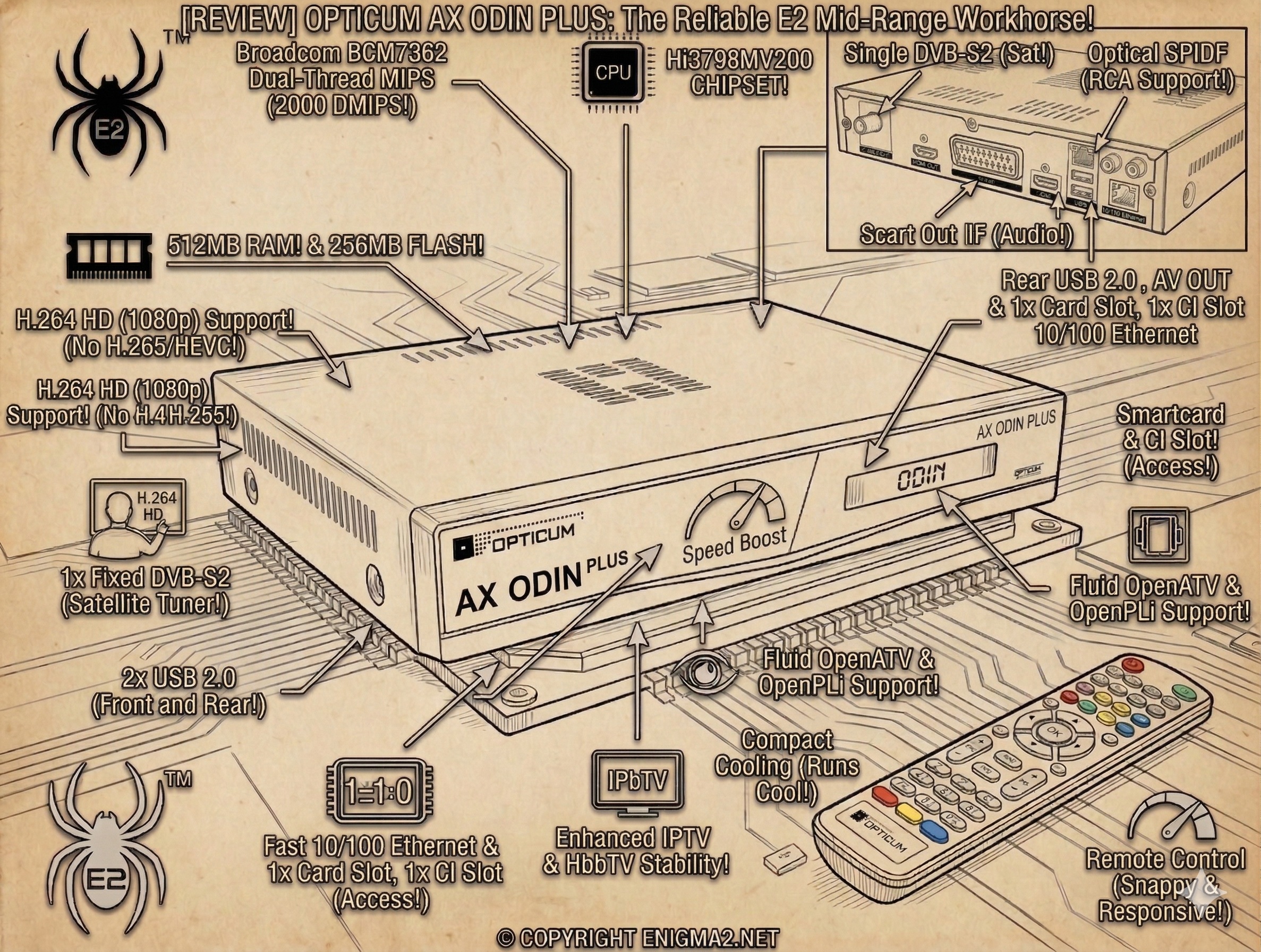

[REVIEW] Opticum AX ODIN Plus
The Opticum AX ODIN Plus is the refined, high-performance evolution of the original Odin series. While the original AX-Odin was a solid “entry” box, the Plus model was designed to bridge the gap between budget receivers and mid-range enthusiasts by nearly tripling the processing power.
Here is the technical review for the “Plus” variant.
Technical Specifications
| Feature | Details |
| CPU | Broadcom BCM7362 Dual-Thread (approx. 2000 DMIPS) |
| RAM | 512 MB DDR3 |
| Flash | 256 MB NAND |
| Resolution | Full HD 1080p (H.264 / MPEG-4) |
| Tuner | 1x Fixed DVB-S2 (Satellite) |
| Connectivity | 2x USB 2.0 (Front & Rear), 10/100 Ethernet, HDMI, RCA AV |
| Display | 4-Digit 7-Segment LED |
| Card Slots | 1x Smartcard Reader, 1x Common Interface (CI) |
The Highlights
1. Significant Performance Boost
The jump from the BCM7358 (750 DMIPS) in the standard Odin to the BCM7362 (2000 DMIPS) in the Plus is night and day. In 2026, this extra headroom is critical for:
-
Faster Boot Times: Noticeably quicker startup from deep standby.
-
Fluid UI: Navigating complex 1080p skins (like MetrixHD) feels much smoother.
-
Plugin Handling: Better stability when running background processes like EPG Import or AutoBouquetsMaker.
2. Enhanced Connectivity
Unlike the basic model, the Plus often features a better layout for peripherals. Having a front-facing USB port behind the flap makes it much easier to swap out firmware or use temporary storage without reaching behind your cabinet.
3. Mature E2 Support
The AX ODIN Plus is a darling of the Open-Source community. It has “rock-solid” driver support for:
-
OpenATV / OpenPLi: The most stable choices for this hardware.
-
IPTV Integration: While it isn’t a 4K box, it handles 1080p IPTV streams and HbbTV significantly better than the non-Plus version.
The Drawbacks
-
Flash Memory Limitation: At 256MB NAND, it is “roomy” for standard use, but you can fill it up quickly if you install large picon sets or heavy skins. (Pro tip: Use a USB stick for Flashexpander).
-
No H.265/HEVC: Similar to its predecessor, it lacks hardware decoding for the newer H.265 codec. It’s a 1080p H.264 machine through and through.
-
Fixed Tuner: Unlike the “Twin” or “Combo” versions, the Plus is typically a single-tuner unit, limiting your ability to record and watch different transponders simultaneously.
The Verdict
Who is it for?
-
The Power User on a Budget: It offers the snappy feel of a mid-range box at a fraction of the cost.
-
Multi-room Client: An ideal “client” box for a bedroom that streams from a main 4K receiver in the living room via RemoteChannelStreamConverter.
-
Reliable Testing: For your work on enigma2.net, this is the perfect benchmark for “standard” E2 performance.
Final Thought
The AX ODIN Plus is the version the original Odin should have been. It’s fast enough to remain relevant for satellite hobbyists who don’t need 4K but demand a lag-free Linux experience. It’s a “set-it-and-forget-it” receiver that just works.
