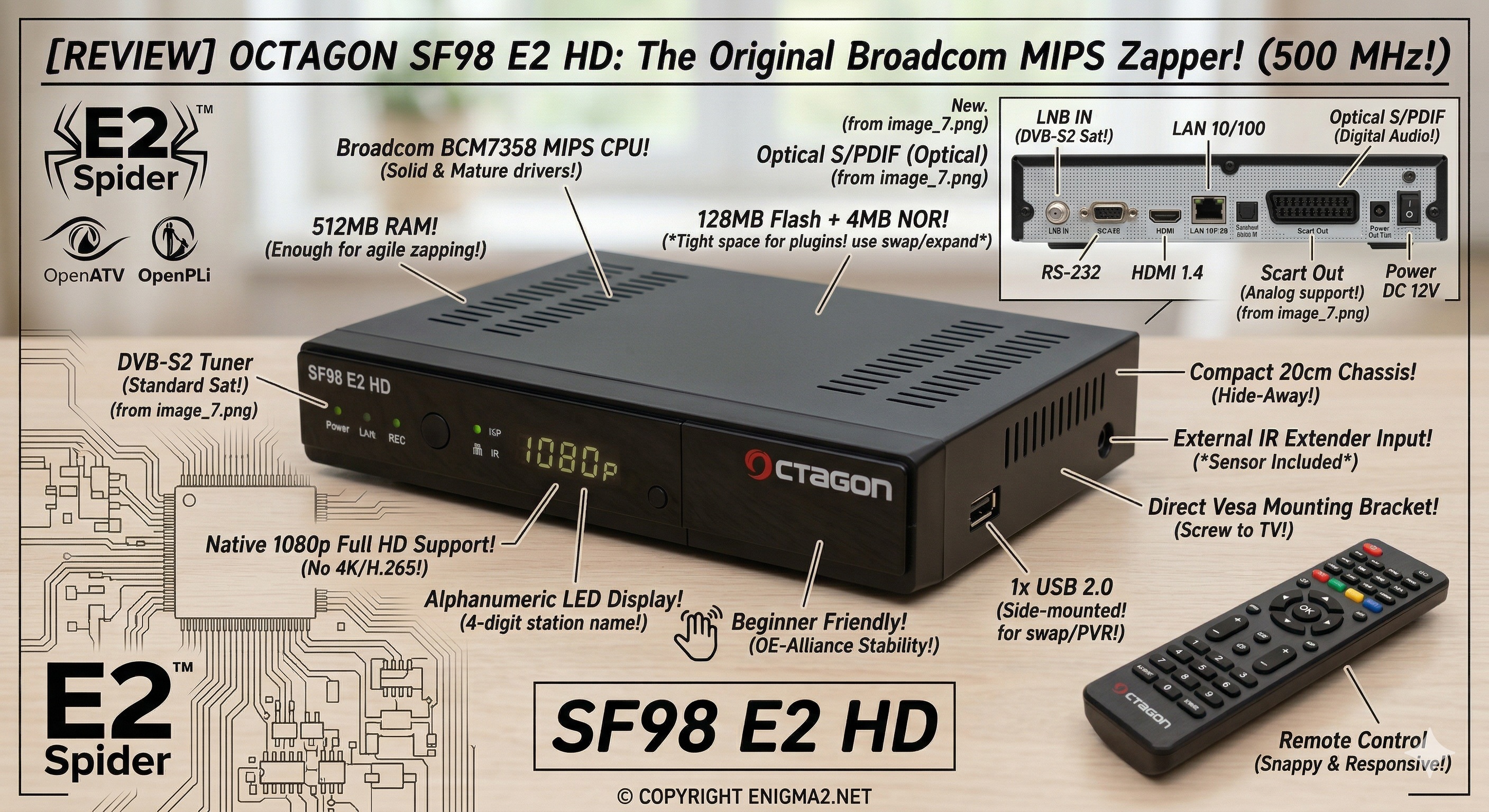

[REVIEW] Octagon SF98 E2 HD
The Octagon SF98 E2 HD holds a special place in history as Octagon’s very first venture into the Broadcom-based Enigma2 ecosystem. While it lacks the 4K muscle of modern SF8008 units, it remains a legendary “entry-level” zapper that introduced the community to the stability of MIPS-based Linux on Octagon hardware.
Technical Blueprint
| Component | Professional Specification |
| CPU | Broadcom BCM7358 MIPS (500 MHz) |
| RAM | 512 MB DDR3 |
| Flash | 128 MB NAND + 4 MB SPI-NOR |
| Resolution | Full HD 1080p (H.264 / MPEG-4) |
| Tuner | 1x DVB-S2 (Satellite) |
| Display | 4-digit Alphanumeric LED |
| Connectivity | 1x USB 2.0, LAN 10/100, HDMI, Scart, S/PDIF |
The Expert’s Take: The Original Zapper
1. Broadcom Stability
At its core, the SF98 utilizes the BCM7358 chipset. For Enigma2 purists, Broadcom chips from this era are famous for their rock-solid driver stability. It may only run at 500 MHz, but because the drivers were so mature, the zapping times are often faster than modern, poorly optimized budget boxes.
2. Compact & Stealthy
Measuring only 20cm wide, the SF98 was designed to be unobtrusive. It even shipped with a mounting bracket that allowed it to be screwed directly to the back of a TV. With the included external IR extender, you can hide the box completely while maintaining full remote control authority.
3. Beginner Friendly
The SF98 was marketed as the “perfect beginner’s box.” It lacks the complexity of dual-tuners or 4K pipelines, making it an excellent training ground for learning how to flash images (like OpenATV or OpenPLi), manage FTP bouquet transfers, and configure basic softcams.
Critical Analysis: The Legacy Trade-offs
-
Memory Constraints: With 128MB of Flash, space is extremely tight. Modern Enigma2 images have grown significantly; you will almost certainly need to use Flashexpander or a swap file on a USB stick to avoid “Flash full” errors when installing plugins.
-
No H.265/HEVC: This box is limited to H.264. It cannot decode modern 4K streams or H.265-based IPTV links. It is strictly a 1080p satellite zapper.
-
Single USB 2.0: Having only one USB port means you’ll need a USB hub if you want to use both a WiFi dongle and an external drive for PVR recordings simultaneously.
Final Verdict
Who is it for?
-
The Secondary Room: An ideal, low-cost client for a kitchen or bedroom where 1080p satellite zapping is all that’s required.
-
Vintage Enthusiasts: For those on enigma2.net who appreciate the “classic” era of MIPS-based Linux receivers.
-
IPTV Client: It works perfectly as a remote stream converter, pulling a signal from a master 4K box in another room.
Final Thought
The Octagon SF98 E2 HD is a reliable piece of Enigma2 history. It doesn’t try to be a media center or a 4K powerhouse; it is a dedicated, stable satellite zapper that proves you don’t need 15,000 DMIPS just to watch the news.
