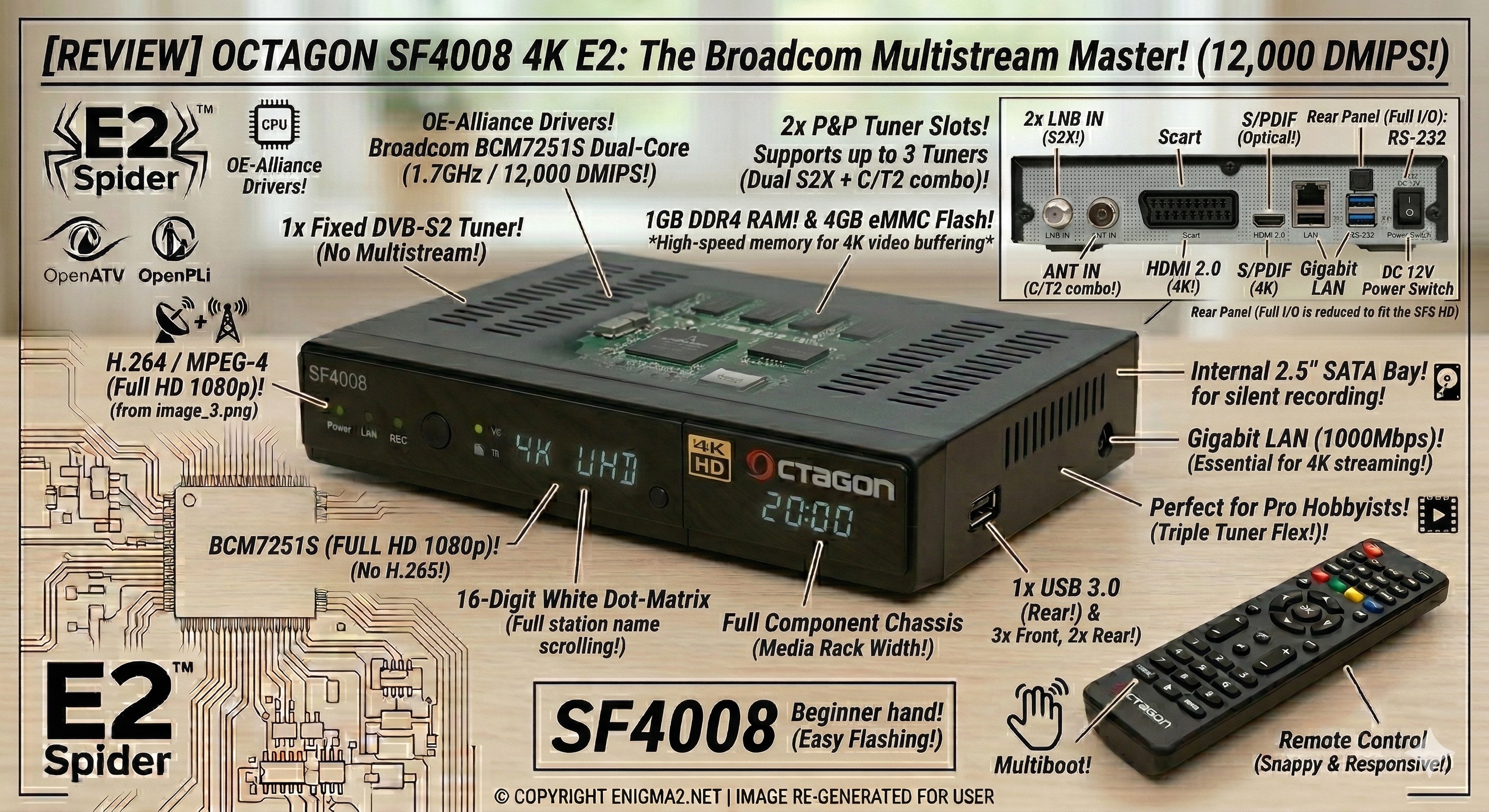

[REVIEW] Octagon SF4008 4K E2
The Octagon SF4008 4K UHD was a landmark release in the Enigma2 world, famously known as the first-ever receiver to support the DVB-S2X standard. It represents the “Broadcom Era” of Octagon flagships, offering a level of expansion and physical connectivity that modern “Mini” boxes simply can’t match.
Technical Blueprint
| Component | Professional Specification | Performance Impact |
| CPU | Broadcom BCM7251S Dual-Core | 1.7GHz delivering a solid 12,000 DMIPS. |
| RAM / Flash | 1GB DDR4 / 4GB eMMC | High-speed memory for 4K video buffering. |
| Tuner Slots | 2x Plug-and-Play Slots | Supports up to 3 tuners (Dual S2X + C/T2). |
| Storage | Internal 2.5″ SATA | Native SATA interface for silent internal recording. |
| Network | Gigabit LAN (1000Mbps) | Essential for stable 4K local streaming. |
| Display | 16-Digit VFD Dot-Matrix | White display for full station name scrolling. |
The Expert’s Breakdown
1. The Triple Tuner Pioneer
The SF4008 was the first to bring DVB-S2X to the consumer market, allowing for channel bonding and technical feeds that were previously inaccessible. Because it features two plug-and-play slots, you can configure it as a Triple Tuner powerhouse (e.g., Dual Satellite + Dual Terrestrial), making it one of the best PVR machines for households that record multiple frequencies simultaneously.
2. Broadcom BCM7251S Architecture
While the newer SF8008 uses HiSilicon, the SF4008 is built on the Broadcom BCM7251S. For many enigma2.net purists, Broadcom remains the “gold standard” for driver stability and video image quality. It handles H.265 (HEVC) UHD playback with a clinical precision that many hobbyists still prefer over newer ARM chipsets.
3. Full-Scale Multimedia Hub
Unlike the compact models, the SF4008 is a full-sized component receiver (260mm wide).
-
Internal SATA: Allows for a 2.5″ HDD to be mounted inside, turning it into a silent, dedicated PVR.
-
Extensive USB: Features one USB 3.0 port and three USB 2.0 ports, providing more than enough room for WiFi dongles, external cooling, and backup drives.
Critical Analysis & Trade-offs
-
Legacy Status: As a Broadcom-based box from the early 4K era, it does not support the newer “Define OS” found on the HiSilicon models. It is strictly an Enigma2 machine.
-
RAM Limitation: 1GB of DDR4 was impressive at launch, but in 2026, running very heavy skins or multiple intensive plugins simultaneously may push the limits compared to 2GB flagships.
-
Size: This is not a “hide-behind-the-TV” box. Its 260mm width and premium VFD display are meant to be showcased in a media rack.
Final Verdict
The Octagon SF4008 4K UHD remains a high-performance “Pro” receiver for the satellite enthusiast who values physical expansion and Broadcom stability. If you need internal SATA storage and a Triple Tuner configuration for a complex home setup, the SF4008 is a legendary workhorse that continues to hold its own against the latest generation of hardware.
