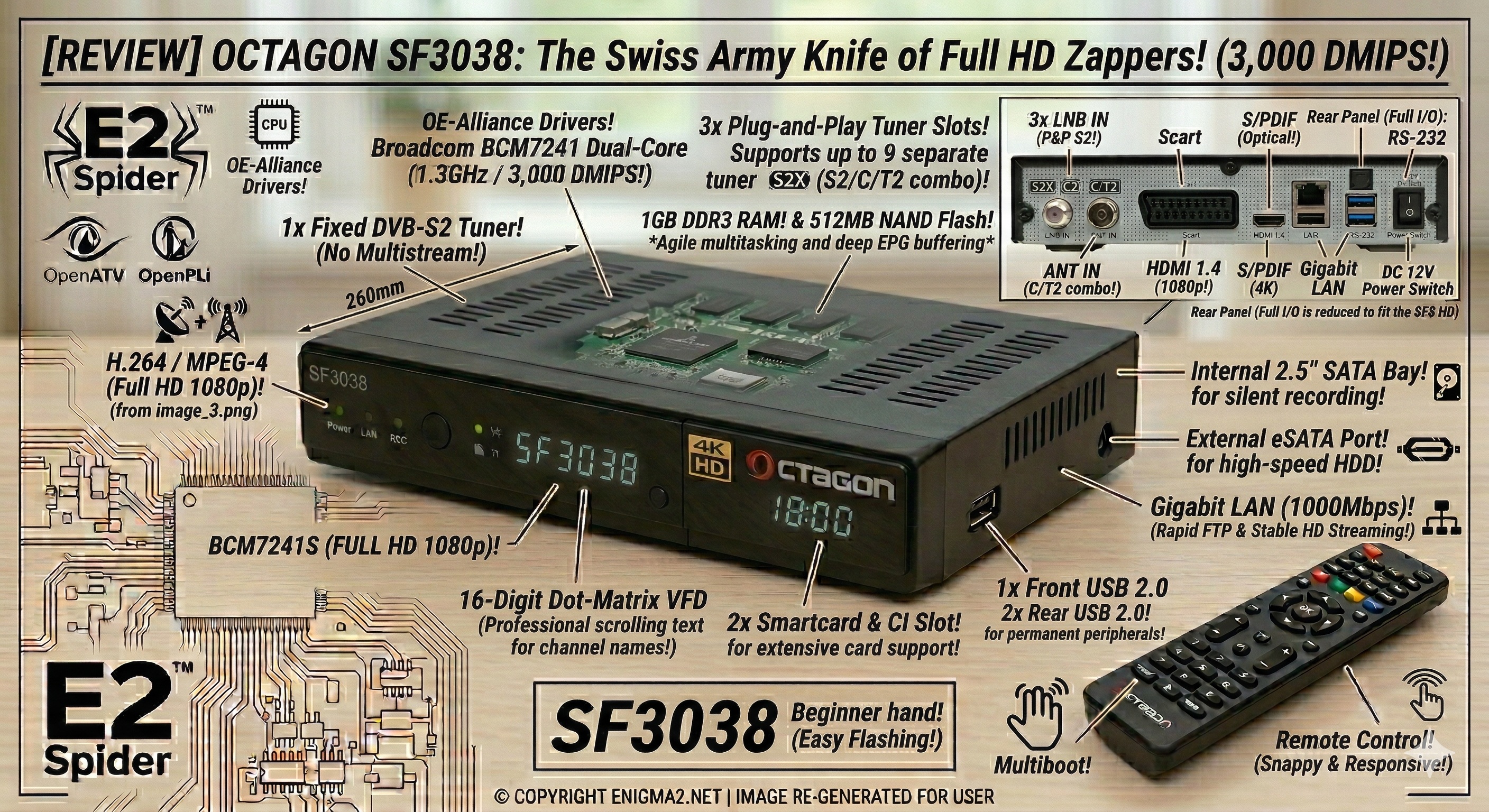

[REVIEW] Octagon SF3038
The Octagon SF3038 E2 HD is often referred to as the “Swiss Army Knife” of the Full HD generation. It was a pivotal release that introduced high-tier hardware flexibility—specifically its Triple Tuner architecture—to a more accessible price point. For the enigma2.net community, it remains a respected legacy machine for users who prioritize recording multiple feeds over 4K resolution.
Technical Blueprint
| Component | Professional Specification | Performance Impact |
| CPU | Broadcom BCM7241 Dual-Core | 1.3 GHz delivering 3,000 DMIPS. |
| RAM / Flash | 1GB DDR3 / 512MB NAND | High RAM for its era; agile multitasking and EPG loading. |
| Tuner Slots | 3x Plug-and-Play Slots | Massive flexibility; up to 3 separate tuners (S2/C/T2). |
| Storage | Internal 2.5″ SATA + e-SATA | Dual recording paths for internal and external HDDs. |
| Network | Gigabit LAN (1000Mbps) | Rapid FTP transfers and stable local HD streaming. |
| Display | 16-Digit VFD Dot-Matrix | Professional scrolling text for channel and event names. |
The Expert’s Breakdown
1. The Triple Tuner Titan
The standout feature of the SF3038 is its 3x Plug-and-Play tuner slots. At a time when most receivers were limited to single or fixed dual configurations, the SF3038 allowed users to mix and match. You could run a 3x DVB-S2 setup for a massive satellite PVR or a hybrid mix of Satellite, Cable, and Terrestrial, supporting up to 9 different tuner combinations.
2. Broadcom BCM7241 Dual-Core Power
Driven by the 1.3 GHz BCM7241, the SF3038 offers a noticeable speed boost over the entry-level SF8 or SF98 models. With 3,000 DMIPS, boot times are significantly faster (approx. 35 seconds), and the user interface—even with heavy 1080p skins—remains fluid. It also features Hardware PiP (Picture-in-Picture) for two HD channels simultaneously.
3. Enthusiast Connectivity
The SF3038 is built for the “Power User.” It features:
-
Gigabit Ethernet: One of the earliest mid-range boxes to include 1000Mbps LAN for high-speed network integration.
-
Dual Smartcard & CI Slot: Extensive support for local decryption cards and modules.
-
Triple USB Ports: One front and two rear ports allow for permanent WiFi dongles and external peripherals without clutter.
Critical Analysis & Trade-offs
-
Legacy H.264/MPEG-4: This is a strictly Full HD (1080p) receiver. It does not support H.265 (HEVC) or 4K UHD. It is not suitable for modern 4K satellite feeds or 4K IPTV portals.
-
Flash Space: While 512MB of Flash was generous at launch, it can fill up quickly with modern Enigma2 images. We recommend using a high-quality USB stick for picons and secondary plugins.
-
Discontinued Support: While it still runs OpenATV 7.x exceptionally well, it does not support the newer “Define OS” environment found on modern ARM-based Octagon hardware.
Final Verdict
The Octagon SF3038 E2 HD is a “pro-sumer” Full HD machine that excels in tuner versatility and network speed. If your setup requires a reliable, multi-tuner satellite hub for recording and you don’t yet need 4K support, the SF3038’s Broadcom stability and Gigabit LAN make it a standout choice for the secondary rooms of any enigma2.net reader.
