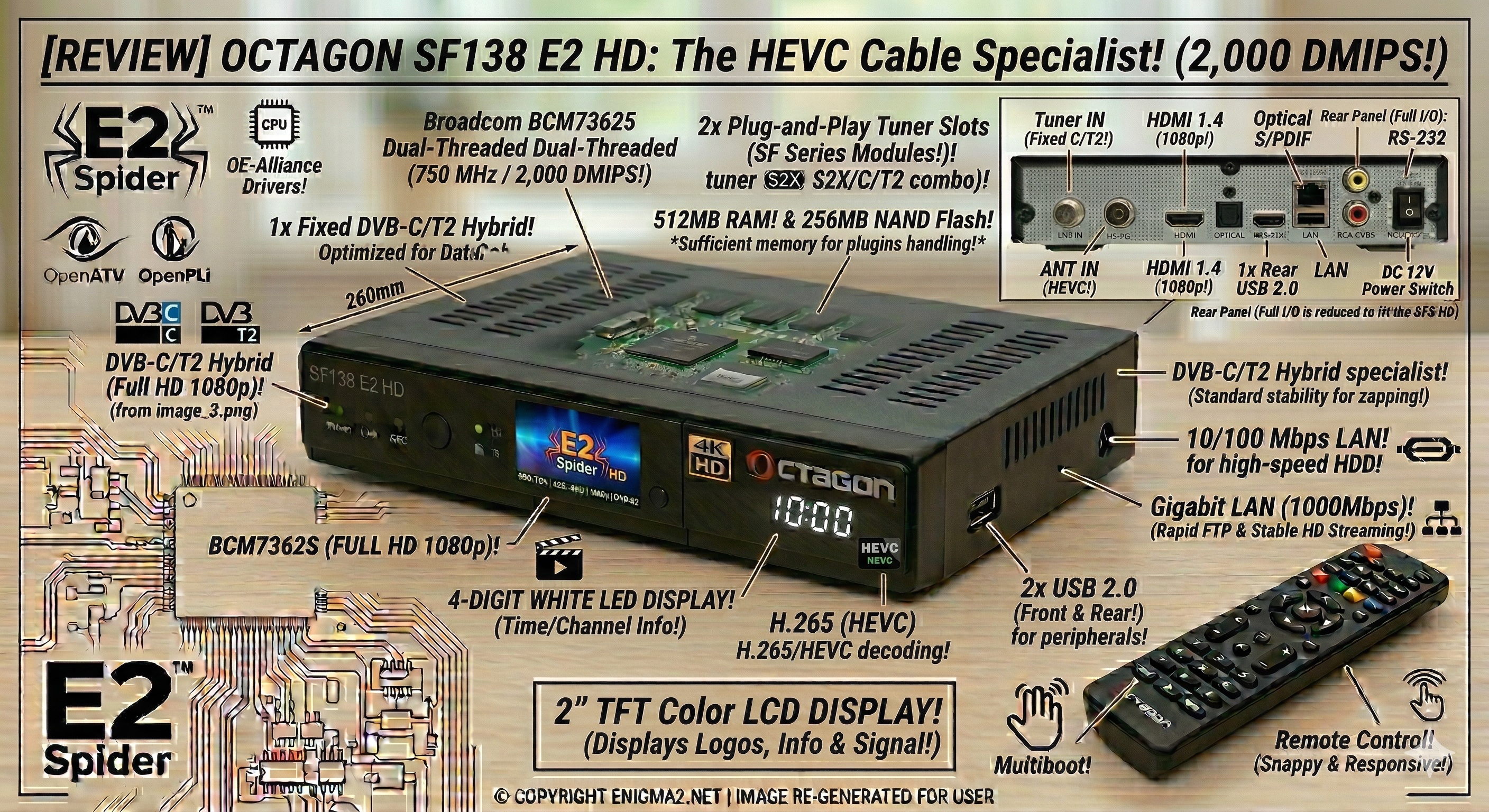

[REVIEW] Octagon SF138 E2 HD
The Octagon SF138 E2 HD is a refined, cable/terrestrial-focused evolution within Octagon’s Broadcom MIPS lineup. While its design language is identical to the SF128 (the satellite variant), the SF138 is specifically engineered as a DVB-C/T2 Hybrid specialist. It is particularly noted for being one of the most stable entry-level receivers to support H.265 (HEVC) for Full HD streaming and terrestrial broadcasts.
Technical Blueprint
| Component | Professional Specification | Performance Impact |
| CPU | Broadcom BCM73625 Dual-Threaded | 750 MHz delivering 2,000 DMIPS with H.265 support. |
| RAM / Flash | 512MB DDR3 / 256MB NAND | Sufficient memory for fast zapping and E2 plugin handling. |
| Display | 4-Digit White LED | High-contrast, modern white display for time/channel info. |
| Tuner | 1x Fixed DVB-C/T2 Hybrid | Optimized for Digital Cable and Terrestrial (HEVC) reception. |
| Decoding | Full HD 1080p H.265/HEVC | Superior image quality and efficiency for IPTV and DVB-T2. |
| Network | 10/100 Mbps LAN | Standard stability for network zapping and updates. |
The Expert’s Breakdown
1. The HEVC Advantage
The SF138’s defining characteristic is the BCM73625 chipset. While earlier Broadcom HD boxes were limited to H.264, the SF138 includes hardware support for H.265 (HEVC). This is crucial for 2026, as it allows the receiver to handle modern DVB-T2 terrestrial standards and IPTV streams that use 50% less bandwidth while providing 100% better image clarity.
2. Modern Aesthetic: The White Display
Octagon moved away from the classic green/blue LED displays for this model, opting for a 4-digit white LED display. This gives the receiver a significantly more modern and premium look on a media shelf. It is bright, sharp, and easy to read from across a room.
3. Professional Connectivity
Despite its compact “Single” chassis, the SF138 retains professional-grade I/O:
-
CI Slot & Smartcard Reader: Full support for conditional access modules and local cards.
-
Rear Panel: Features Optical S/PDIF for digital audio and RCA CVBS for legacy support, ensuring it fits into any home cinema architecture.
-
Low Power Draw: Consumes less than 0.5W in deep standby, making it one of the most eco-efficient receivers in its class.
Critical Analysis & Trade-offs
-
Not a 4K Box: Despite its H.265 capability, the SF138 is a Full HD (1080p) receiver. It can decode 4K-encoded streams for downscaled playback, but it will not output 2160p resolution.
-
Cable/Terrestrial Only: This model does not have a satellite tuner. If you need DVB-S2 support, you must look at the SF128 or the SF228/SF3038 models.
-
Single Tuner Limitation: You cannot watch one cable channel while recording another. For that level of flexibility, a multi-tuner box like the SF4008 is required.
Final Verdict
The Octagon SF138 E2 HD is the definitive “Terrestrial Specialist.” Its ability to handle HEVC content on a stable Broadcom platform makes it the ideal choice for cable TV users and those in regions where DVB-T2 is the primary broadcast standard. For the enigma2.net community, it serves as a high-performance, low-cost hybrid station that excels in simplicity and image quality.
