[HOW TO FLASH] how to flash AMIKO Viper Combo

The Amiko Viper Combo (the standard non-HDD version) is a compact Mipsel receiver that combines DVB-S2 and DVB-C/T2 tuners. Like the other Mipsel-based Viper models, it uses a folder-based trigger for the flashing process.

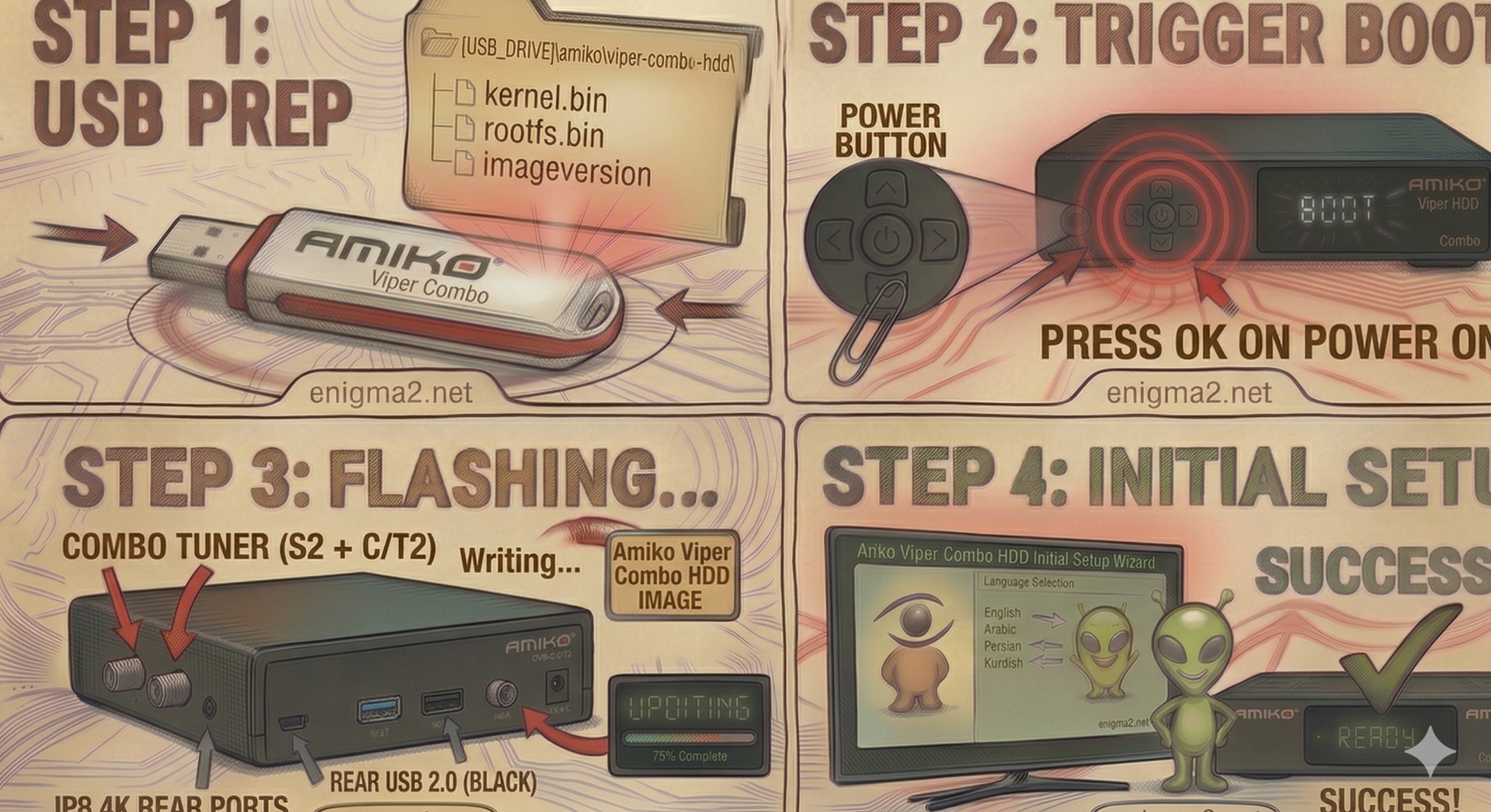

Step 1: USB Preparation

• Format: The USB stick must be formatted to FAT32. For these Mipsel boxes, a smaller, older USB 2.0 drive (4GB or 8GB) is the most reliable choice.

• Folder Structure: When you extract your image (OpenATV, PurE2, etc.), you will see a folder named amiko.

• Target Path: Inside the amiko folder, there must be a subfolder named viper-combo.

  • Path check: USB_DRIVE:\amiko\viper-combo\

• Files: Ensure the folder contains kernel.bin, rootfs.bin, and imageversion.

Step 2: The Flashing Procedure

1. Full Power Off: Flip the physical power switch at the back of the receiver to OFF.

2. Insert USB: Plug the prepared USB stick into one of the USB ports (the rear port is typically recommended).

3. The Trigger:

   • Switch the rear power toggle to ON.

   • Immediately watch the front panel display.

   • As soon as the display shows “USB” or “UPDT”, quickly press the Power/OK button on the front panel.

4. Wait for Progress: The display will cycle through the flashing stages. This takes about 3–5 minutes. Do not interrupt the power.

5. Finish: Once the display shows “Success” or the box reboots, remove the USB drive during the first boot logo.
