[HOW TO FLASH] how to flash AMIKO Viper 4K51

The Amiko Viper 4K51 is a high-performance HiSilicon-based receiver. Unlike the older Mipsel Viper models, this 4K version uses the modern Recovery Menu (Maintenance Mode) to manage its internal flash and multiboot slots.

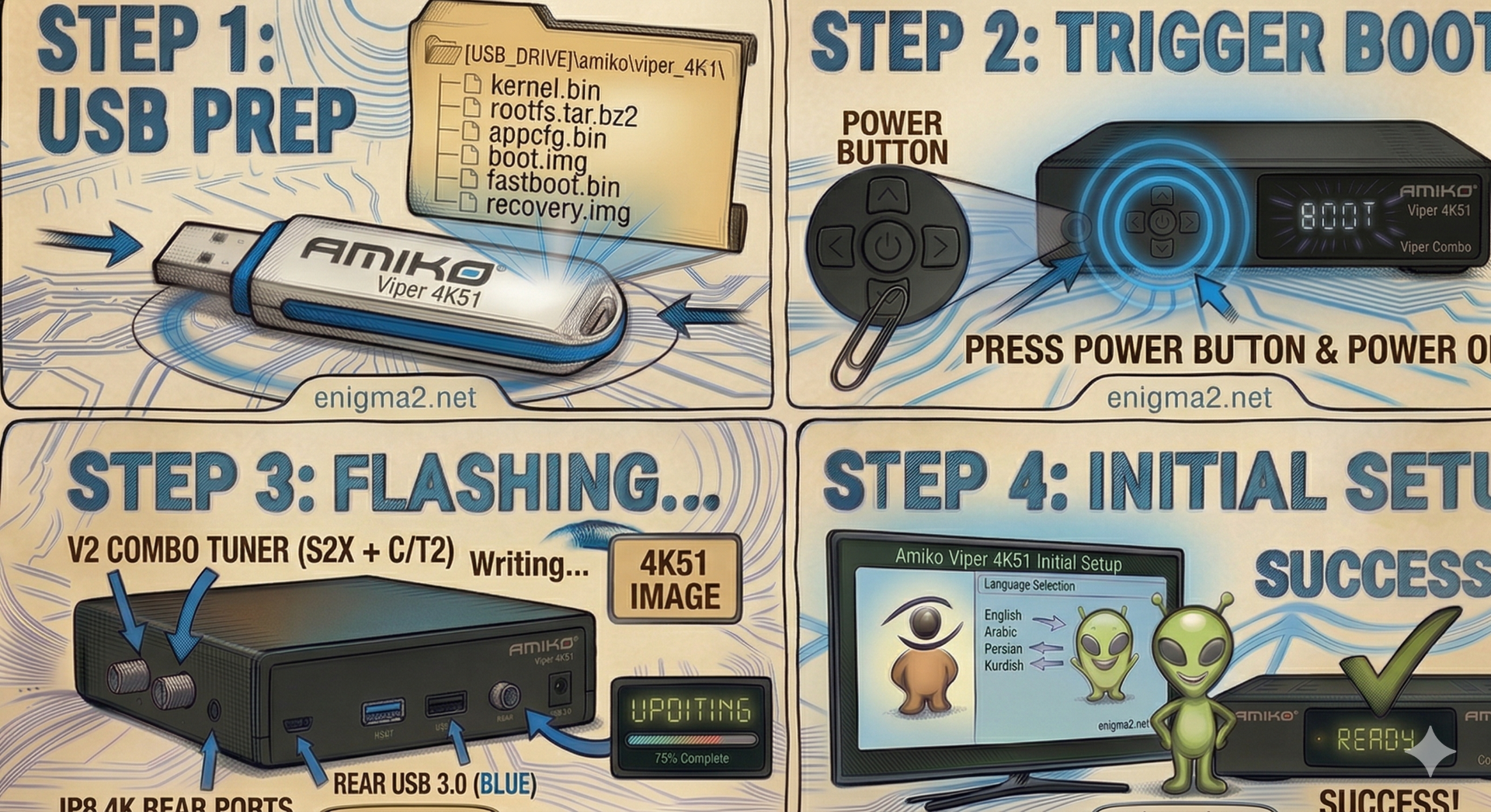

Step 1: USB Preparation

• Format: Use a high-quality USB 2.0 or 3.0 stick formatted to FAT32.

• The File: Download the “recovery” zip file for the Amiko Viper 4K51 (e.g., OpenATV 7.x).

• Target Path: Copy the .zip file directly to the root of your USB drive. Do not unzip it.

Step 2: Accessing the Recovery Menu

1. Power Off: Turn off the receiver using the physical power switch at the back.

2. Insert USB: Plug the drive into the USB 3.0 (blue) port on the side or rear.

3. The Trigger:

   • Press and hold the Power Button on the front panel.

   • While holding it, flip the rear power switch to ON.

   • Keep holding until the “Maintenance Mode” menu appears on your TV screen.

Step 3: Flashing the Image

1. In the menu, select “Flash local image”.

2. Navigate to your USB drive and select the .zip file.

3. Select a Slot: Choose one of the 4 available Multiboot slots (e.g., Linux 1).

4. Wait for the progress bar to reach 100%. Once finished, select “Boot” and pick the slot you just flashed.

The flashing process should take approximately two to four minutes to complete, while the receiver
is being flashed it is vitally important that you DO NOT power the receiver down for any reason as
this can cause serious and or permanent damage.
